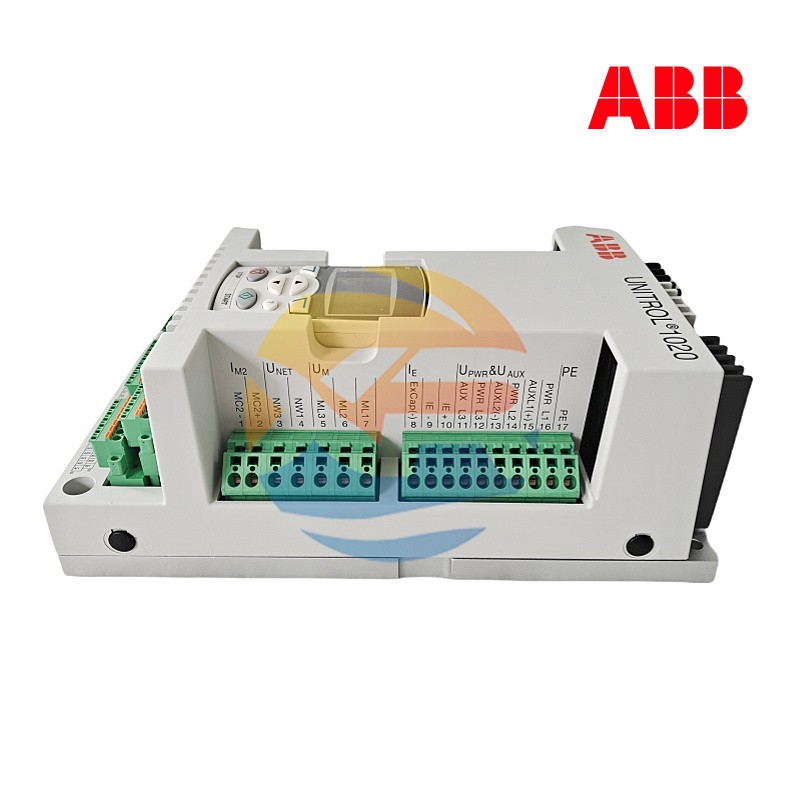

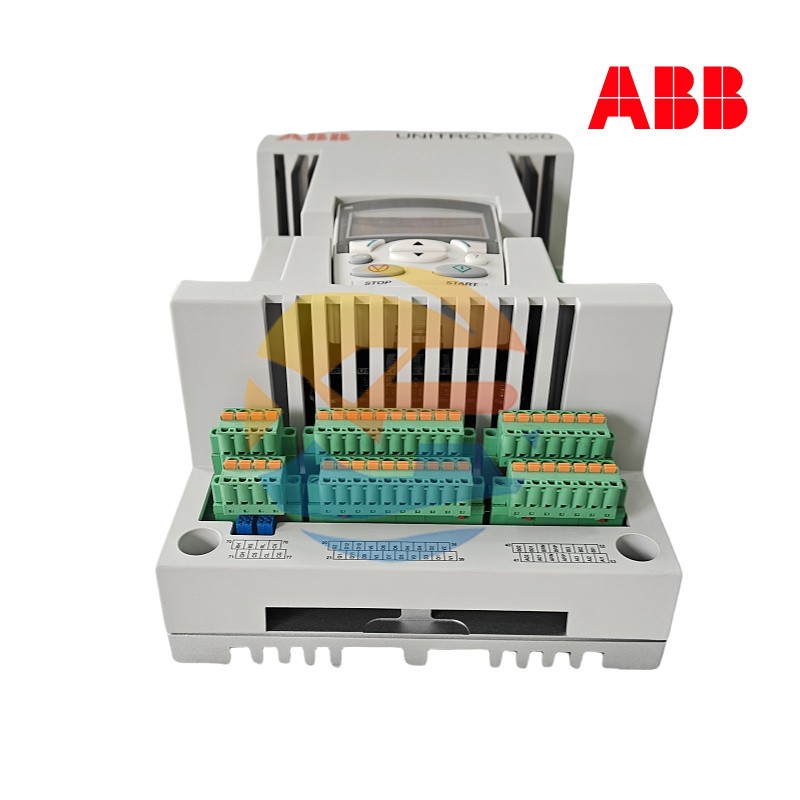

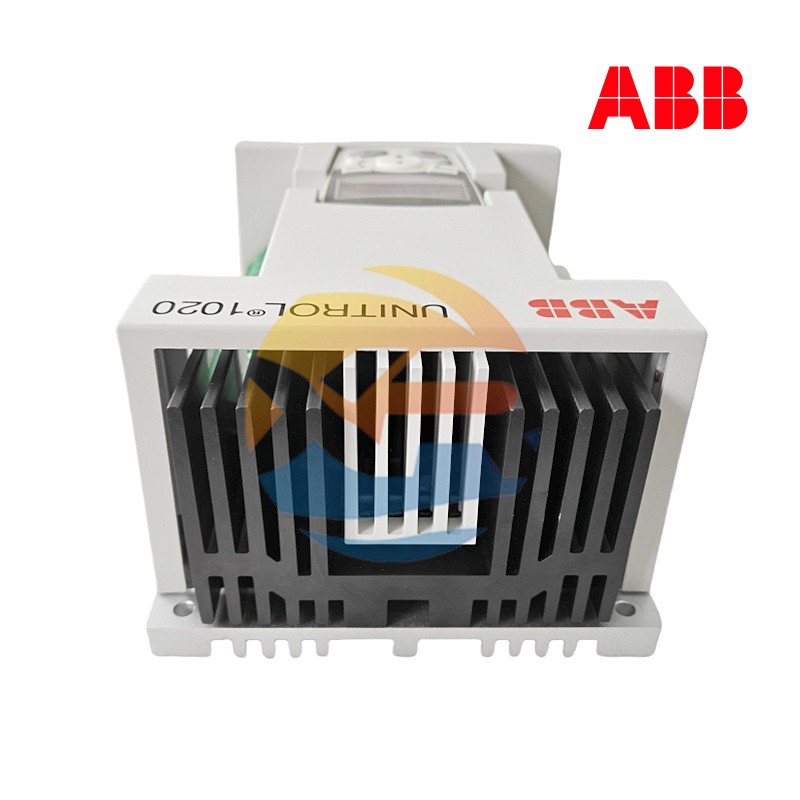

ABB UNITROL1020 UNS0119A-Z,V1 3BHE030579R0007
Overview
The ABB UNITROL 1020 is a multifunctional control and monitoring module, primarily designed for advanced regulation and control of power systems. It is suitable for voltage stabilization and power system optimization in fields such as power plants, industry, and marine applications. As part of the ABB UNITROL 1000 series, it is specifically engineered for small and medium-sized synchronous generators and industrial equipment, featuring functions like automatic synchronization, data logging, and flexible control strategies.
Specifications
Input Voltage: AC 110V/220V (some models support 100-400V AC).
Output Voltage: Adjustable, set according to application requirements.
Communication Interfaces: Supports multiple protocols including Modbus, DNP3, IEC 60870-5-101/104, Ethernet, and USB.
Operating Temperature Range: -40°C to 70°C (operating), -40°C to 85°C (storage).
Maximum Output Current: 600A.
Dimensions: Approximately 10cm × 6.3cm × 10.5cm.
Product Features
High-Performance Control: Adopts advanced microprocessor technology and IGBT semiconductor devices, enabling high-precision voltage control and rapid response capabilities.
Safety: Equipped with multiple safety mechanisms such as overload protection, short-circuit protection, and over-temperature protection.
Communication and Compatibility: Supports a variety of industrial communication protocols (e.g., EtherCAT, Profinet, Modbus) and remote access functions.
Usability: Provides a user-friendly interface, local configuration, and remote monitoring functions.
Structure and Composition
Mechanical Design: Features a compact and robust structure, suitable for harsh environments, with anti-vibration and dust-proof designs (e.g., IP65 protection class).
Interfaces and Connections: Offers power supply terminals, measurement terminals, communication ports (e.g., USB, Ethernet), LED indicators, and local control buttons.
Modular Design: Supports extended functions such as data logging, event logging, and synchronization units.
Application Fields
Power Plants: Used for generator excitation control, voltage stabilization, and power factor optimization.
Industrial Sector: Applied in industrial electrical equipment, manufacturing, energy, mining, non-ferrous metals industries, etc.
Marine and Power Systems: Utilized in marine power systems, power grid stabilization, and power transmission and distribution.
Installation and Maintenance
Installation: Supports panel or rack mounting, and must comply with safety specifications and environmental conditions (e.g., temperature, humidity).
Maintenance: Provides preventive maintenance plans, troubleshooting guides, and remote diagnostic functions.
Safety and Compliance: Complies with international standards (e.g., DNV, UL) and safety regulations
