ABB UFD203A101 3BHE019361R0101_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB UFD203A101 3BHE019361R0101

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Input Voltage: 380-480 V AC
Output Power: 2.2 kW
Frequency Range: 0-320 Hz
Power Supply Voltage: 24V DC
Communication Protocols: Supports multiple industrial communication protocols (such as Ethernet, Modbus, SIL Safety I/O)
Dimensions: Approximately 10cm x 15cm x 2cm
Weight: Approximately 0.05 kg
Operating Temperature: -10°C to 60°C
Protection Class: IP20/IP54

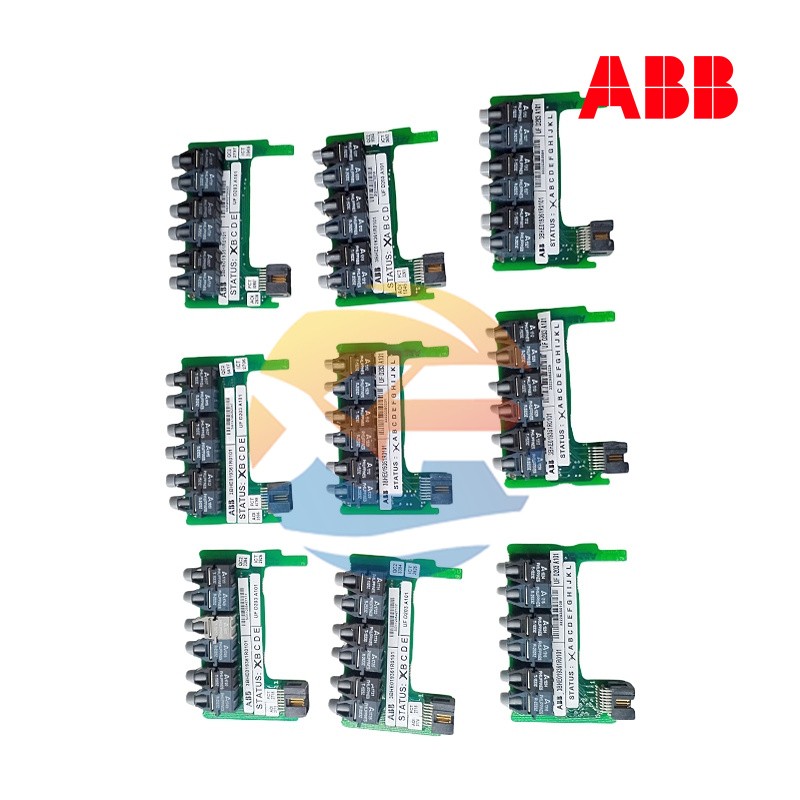

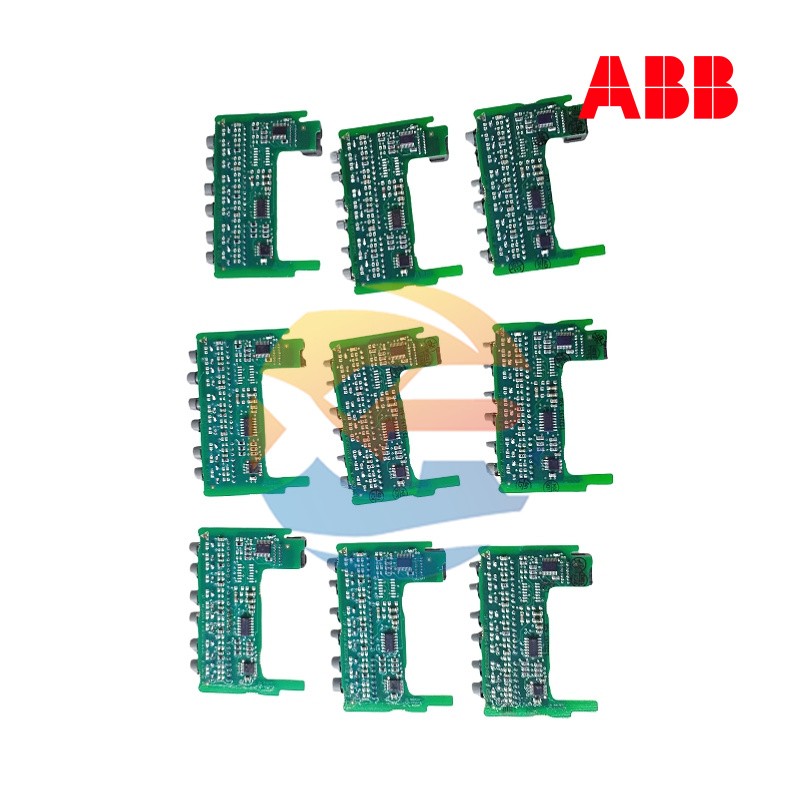

ABB UFD203A101 3BHE019361R0101

1. Overview

The ABB UFD203A101 3BHE019361R0101 is an industrial automation and control module manufactured by ABB. It belongs to the UFD series of low-voltage switchgear, and is widely used in industrial automation and control systems. This module features high performance, reliability, and compatibility, making it suitable for various industrial environments. It supports multiple communication protocols and interfaces, and is applicable to motor control, power conversion, and industrial automation systems.

2. Parameters

2.1 Input/Output Parameters

Input Voltage: 380-480 V AC
Output Power: 2.2 kW
Frequency Range: 0-320 Hz
Power Supply Voltage: 24V DC
Communication Protocols: Supports multiple industrial communication protocols (such as Ethernet, Modbus, SIL Safety I/O)

2.2 Physical and Environmental Parameters

Dimensions: Approximately 10cm x 15cm x 2cm
Weight: Approximately 0.05 kg
Operating Temperature: -10°C to 60°C
Protection Class: IP20/IP54

3. Product Features

3.1 Reliability and Performance

Adopts a high-reliability design, suitable for harsh industrial environments; supports customized processing and quality certifications (e.g., overload capacity of 150% for 1 minute, 180% for 10 seconds).
Supports multiple interfaces (such as optical fiber, cable, Ethernet) and multi-channel I/O options.

3.2 Application Adaptability

Supports multiple industrial protocols (such as IEEE802.11, industrial Ethernet) and multi-field applications (such as fans, pumps, machine tools, conveyors).

3.3 Structure and Composition

Modular Design: Supports modular expansion, can be integrated into complex automation systems, and supports hot-swapping and redundancy design.
Interfaces and Connections: Provides multiple interfaces (such as AnyIO, optical fiber, communication modules) and backplane support.

4. Application Fields

4.1 Industrial Automation

Widely used in fans, pumps, compressors, conveyors, machine tools, packaging machinery, textile machinery, etc.

4.2 Energy and Infrastructure

Applied in power distribution, industrial control, energy management, etc.

5. Installation and Maintenance

5.1 Installation

The official documentation should be referred to or the supplier should be contacted to ensure compliance with the protection class and environmental requirements.

5.2 Maintenance

Maintenance is simple, and the module supports remote diagnosis and self-diagnosis functions.
