ABB NTDI01_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB NTDI01

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Operating Voltage: 24V
Input/Output Voltage: DC 24V
Input/Output Current: Some versions support 10A
Number of Channels: 16-channel digital input/output
Dimensions: Some versions are 200*150mm
Weight: Approximately 0.36kg to 2kg
Operating Temperature: 0 to +55°C
Storage Temperature: -25 to +70°C
Protection Class: IP20

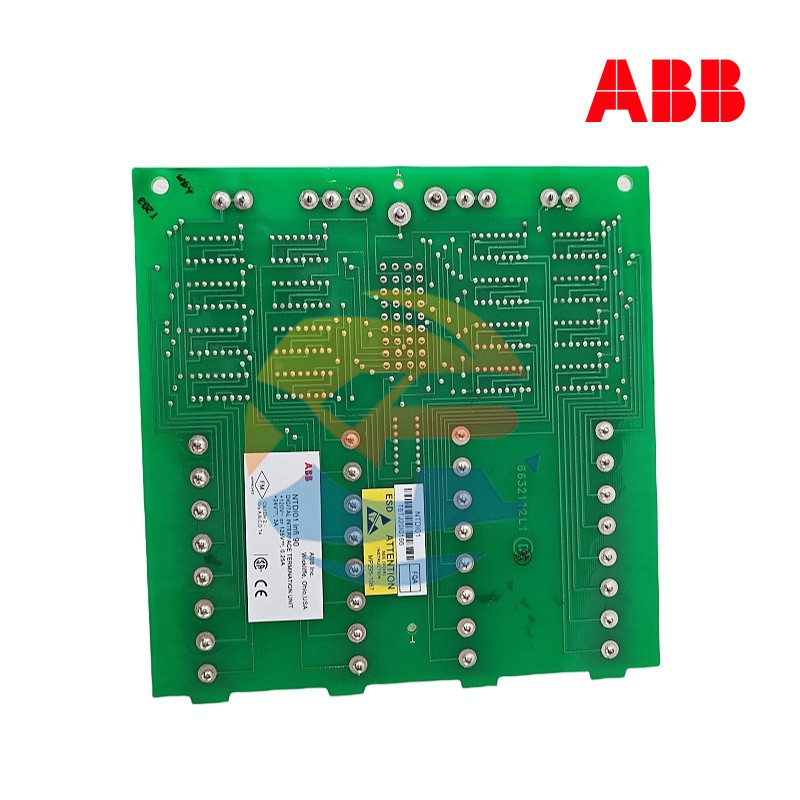

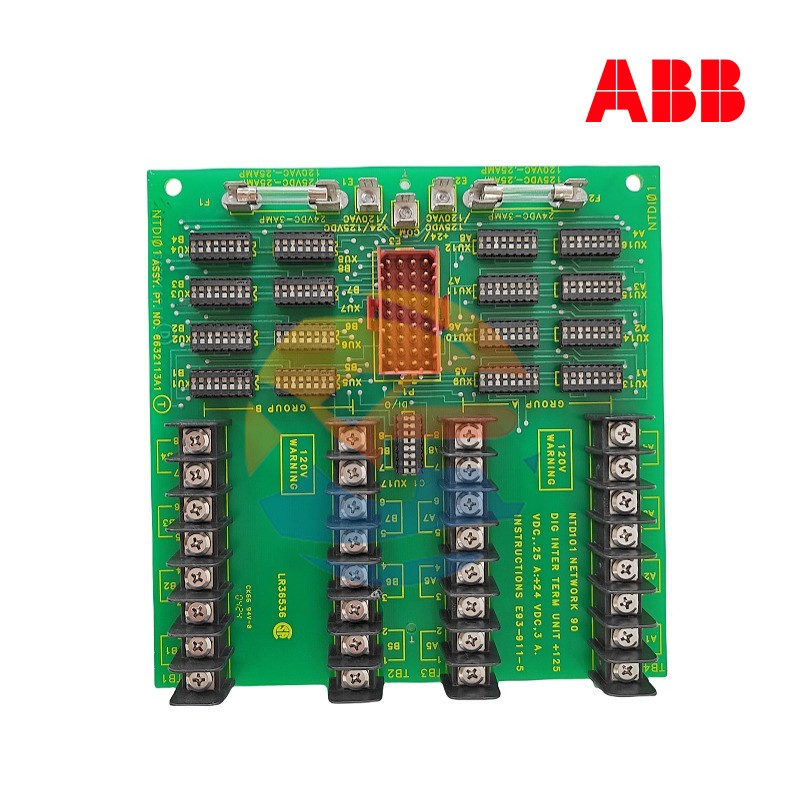

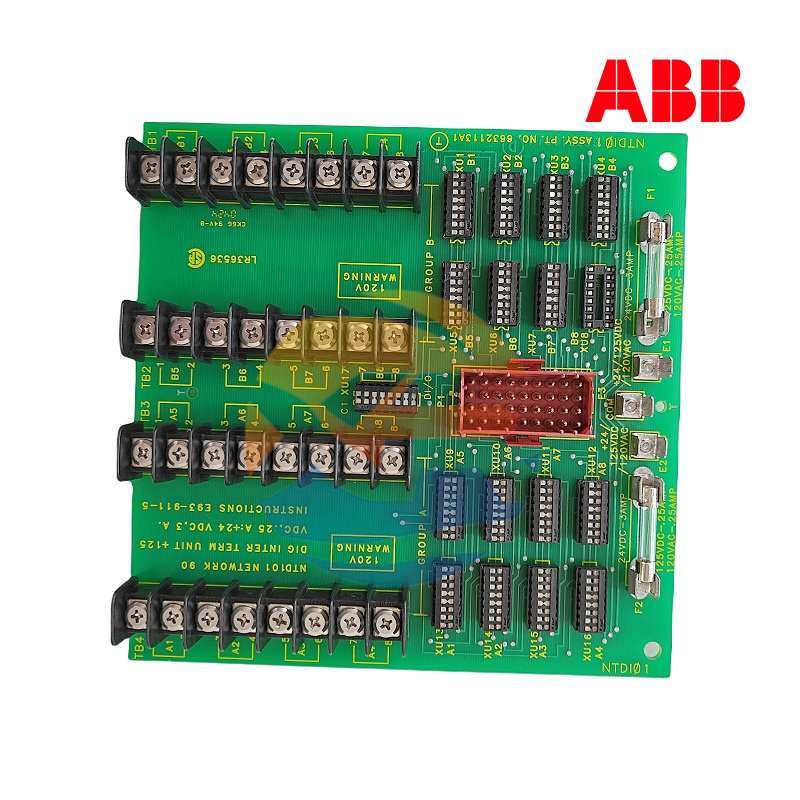

ABB NTDI01

1. Overview

The ABB NTDI01 is a high-performance digital input terminal unit, mainly used in industrial automation systems to provide reliable signal connection and management functions. It integrates a variety of electrical accessories, such as switches, relays, isolators, safety barriers, terminals and fuses. Through its modular design, it enhances the system's protection performance, indication functions and installation convenience. This product is widely applied in multiple industries including chemical engineering, petroleum, electronics, aerospace and electrical engineering, and can meet the needs of various complex industrial environments.

2. Specifications

Basic Specifications

Brand: ABB
Model: NTDI01
Type: Digital Input Terminal Unit
Operating Voltage: 24V
Input/Output Voltage: DC 24V
Input/Output Current: Some versions support 10A
Number of Channels: 16-channel digital input/output
Dimensions: Some versions are 200*150mm
Weight: Approximately 0.36kg to 2kg
Operating Temperature: 0 to +55°C
Storage Temperature: -25 to +70°C
Protection Class: IP20
Electrical Safety: Complies with standards such as IEC 61131-2, UL 61010-1 and UL 61010-2-201

Technical Specifications

Power Supply Voltage: AC 24V
Input/Output Signal: Digital input/output
Communication Interface: RS485
Frequency Characteristic: Low frequency
Power Characteristic: Low power

3. Product Features

Modular Design: The NTDI01 adopts a modular design, which is convenient for users to configure and expand according to needs, and supports cooperation with other modules (such as IMDSI02).
High Reliability and Stability: It uses industrial-grade components, featuring high reliability and strong anti-interference ability, and can operate stably for a long time in harsh industrial environments.
Integrated Design: It integrates a variety of electrical accessories, such as switches, relays, isolators, safety barriers, terminals and fuses, improving the system's protection performance and installation convenience.
Flexible Configuration: It supports multiple input/output voltage and current standards, which can meet different application requirements.
Easy Installation and Maintenance: It is designed to be easy to install and wire, supports distributed expansion, and is convenient for integration into existing systems.

4. Structure and Composition

Structure

The NTDI01 adopts a compact design with a small size, suitable for scenarios with limited space. Some versions use high-quality metal enclosures, which have good corrosion resistance and electromagnetic shielding performance.

Composition

It includes digital input/output modules, power interfaces, communication interfaces, protection circuits, terminal blocks and other components.

5. Application Fields

Industrial Automation: Widely used in industrial automation systems for connecting and managing digital input and output signals.
Process Control: Applied in fields such as process control, factory automation and energy management.
Other Fields: Used in multiple industries including chemical engineering, petroleum, electronics, aerospace and electrical engineering.

6. Installation and Maintenance

Installation

The NTDI01 adopts a modular design, making installation simple. It supports rack mounting and screw terminal connection.

Maintenance

It supports distributed expansion and can be flexibly configured through software to adapt to different application requirements.
A detailed installation and maintenance manual is provided to support users in physical installation, wiring, debugging and troubleshooting.
