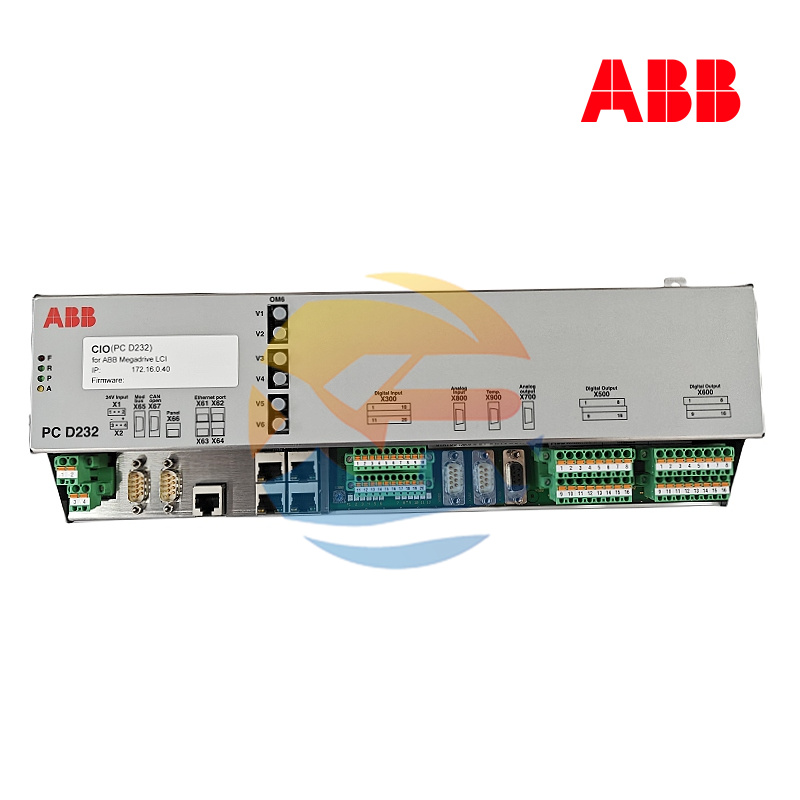

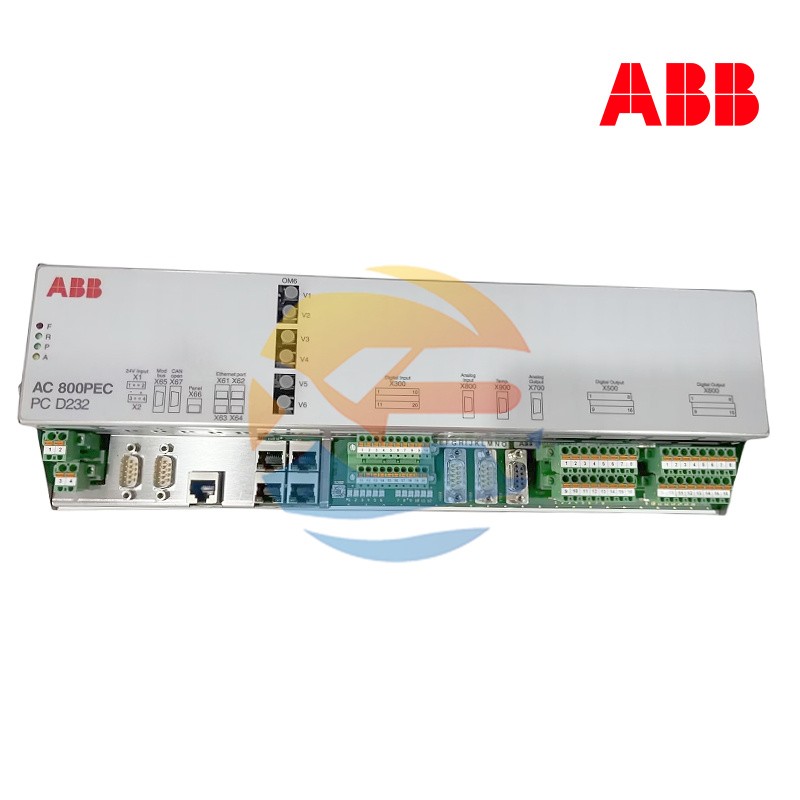

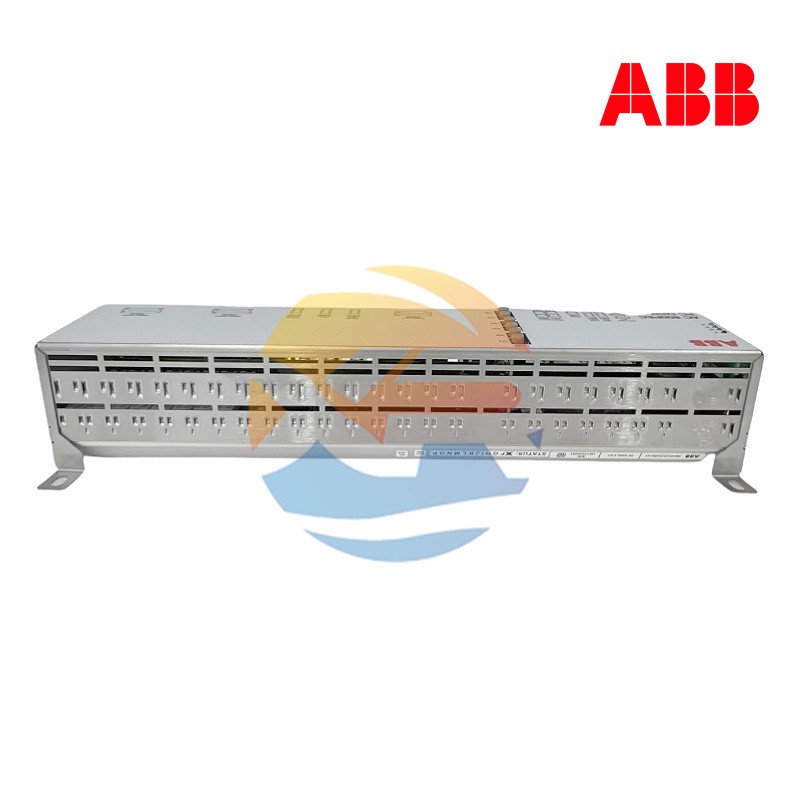

ABB PCD232A101 3BHE02293R0101 excitation controller

Model:ABB PCD232A101 3BHE02293R0101 excitation controller

  • Brand: ABB
  • Price range (USD): 100-20000
  • Country: Switzerland
  • Parameter: Input Voltage: 24V DC
    Communication Interfaces: Supports RS232/485, Ethernet, PROFIBUS DP, Modbus, Ethernet/IP, etc.
    Control Modes: PID, fuzzy control, genetic algorithm, etc.
    Operating Temperature: -20~60℃
    Dimensions: Approximately 100x150x50mm
    Protection Class: IP20

ABB PCD232A101 3BHE02293R0101

1. Overview

The ABB PCD232A101 3BHE022293R0101 is an excitation controller primarily used in the generator excitation system of power systems to ensure the stable operation of generators. Its functions include regulating the excitation current of synchronous generators to maintain the stability of voltage output. This product belongs to the low-voltage switchgear or motor control product line, and is suitable for safe power distribution and control in industrial and commercial scenarios.

2. Parameters

Input Voltage: 24V DC
Communication Interfaces: Supports RS232/485EthernetPROFIBUS DPModbusEthernet/IP, etc.
Control Modes: PID, fuzzy control, genetic algorithm, etc.
Operating Temperature: -20~60℃
Dimensions: Approximately 100x150x50mm
Protection Class: IP20

3. Product Features

High Reliability: Adopts a modular design for easy installation and maintenance.
User-Friendliness: Provides a user-friendly interface and programming environment, and supports multiple communication protocols.
Safety: Equipped with fault detection and protection functions.
Compatibility: Supports a variety of industrial standards and protocols.

4. Structure and Composition

Modular Design: Adopts a compact MTU terminal configuration and supports DIN rail installation.
Terminal Configuration: Includes a variety of input/output interfaces (such as analog/digital input/output).
Structure: Features a robust design for easy on-site installation and maintenance.

5. Application Fields

Power System: Used in thermal power plants, hydropower plants, nuclear power plants, etc.
Industrial Automation: Applicable to industrial automation control, robot control, intelligent building control, etc.
Other Fields: Environmental protection industry, traffic signal control, medical equipment control, etc.

6. Installation and Maintenance

Installation: The modular design facilitates installation and maintenance, and supports DIN rail installation.
Maintenance: The user-friendly interface and fault detection functions are provided for quick maintenance.
