Product Overview

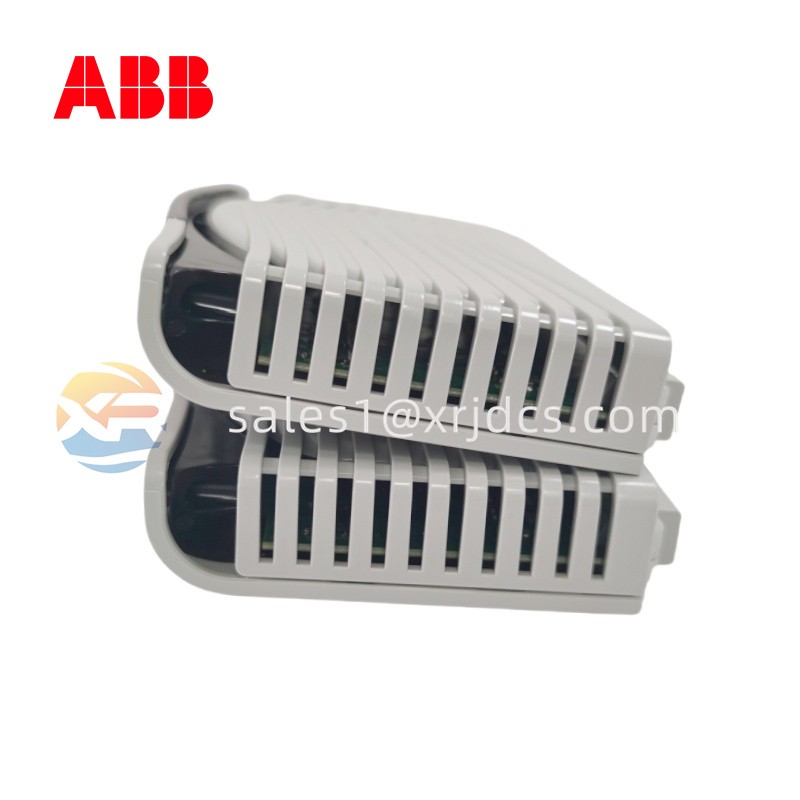

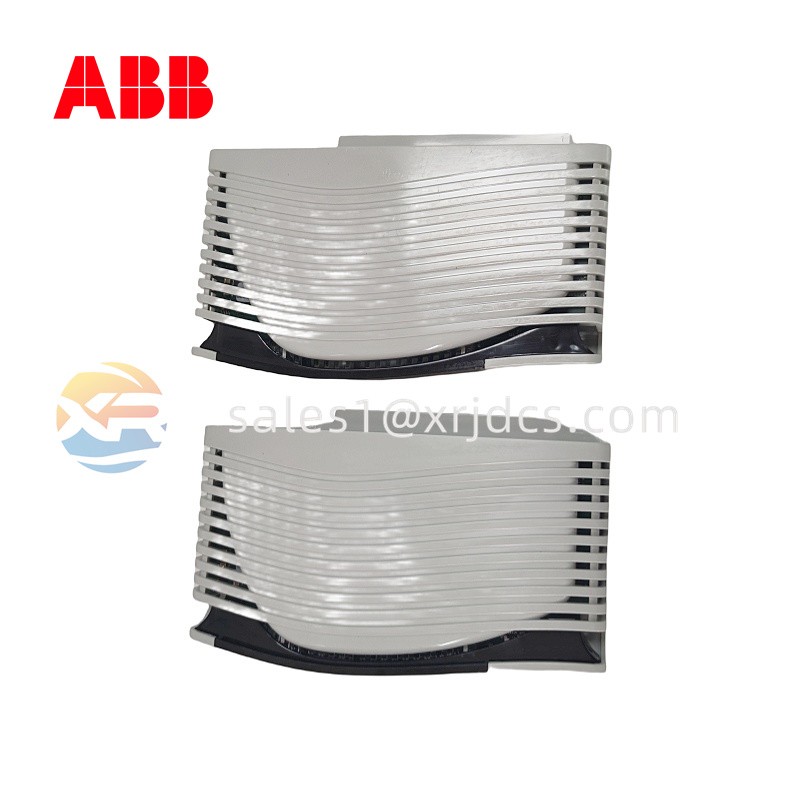

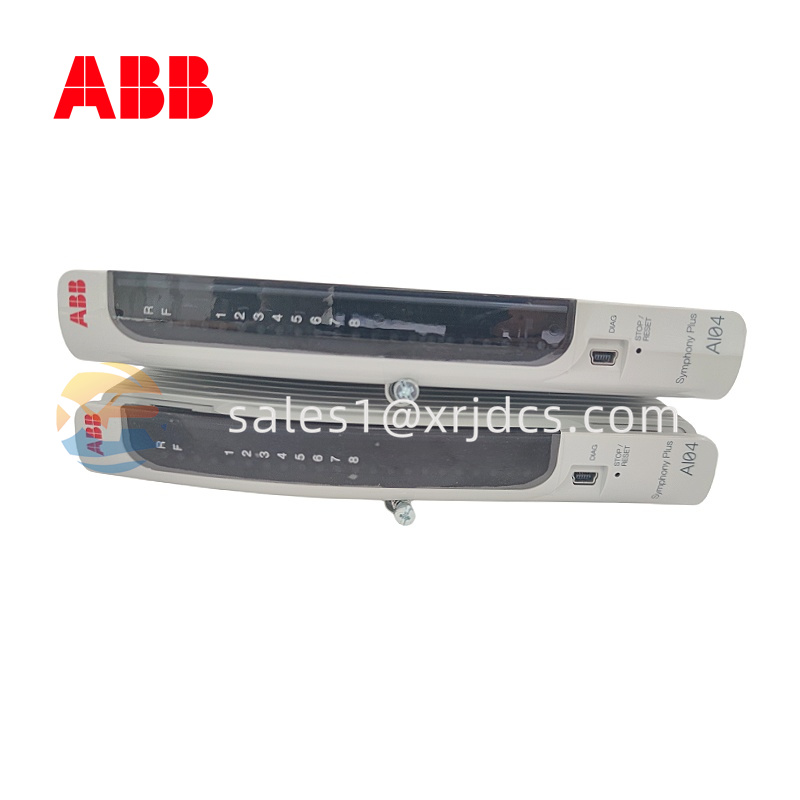

The ABB AI04 is a high-stability analog input module designed for precise signal acquisition in industrial automation and process control systems. Built to integrate seamlessly into ABB’s control platforms, the AI04 ensures accurate reading of field signals such as temperature, pressure, level, or other process variables. Its robust design, noise-resistant circuitry, and dependable performance make it a common choice in utilities, manufacturing, and critical infrastructure facilities.

Structure & Internal Composition

The AI04 module is engineered with:

Multi-channel analog acquisition circuitry for simultaneous signal processing

Isolated input paths that reduce ground loops and external interference

High-precision A/D converters, improving measurement resolution

Reinforced terminal connectors supporting reliable field wiring

Diagnostic microcontroller monitoring internal states and signal health

Industrial-grade PCB layout optimized for heat dissipation and longevity

This internal structure ensures stable, long-duration operation even in high-vibration or EMI-heavy environments.

Technical Specifications

Model: ABB AI04

Module Function: Analog input processing

Number of Channels: 4 input channels

Signal Types: Supports standard industrial analog ranges (e.g., 0–10V, 4–20mA depending on system configuration)

Power Source: Supplied via system backplane

Input Isolation: Channel-to-bus and channel-to-channel isolation

Mounting: Rack-mounted module

Compatibility: Designed for ABB industrial control systems within its corresponding series

Environmental Rating: Withstands industrial temperature and humidity ranges

Key Features

High signal accuracy, suitable for advanced process monitoring

Stable input isolation, preventing cross-channel interference

Flexible configuration, allowing adaptation to different sensor types

Wide system compatibility, integrating seamlessly with ABB controller families

Low maintenance, due to simple wiring design and robust electronic components

Built-in diagnostics, assisting operators with troubleshooting and performance verification

Application Fields

The ABB AI04 module is widely utilized in:

Chemical and petrochemical plants

Power generation and distribution automation

Water and wastewater treatment systems

Pulp & paper and textile processing

HVAC monitoring and building automation

Food & beverage and pharmaceutical manufacturing

Heavy industry process control panels

Any environment requiring accurate analog measurement can benefit from the AI04.

Installation Instructions

De-energize the control system before module insertion or removal.

Align the AI04 with the designated rack slot and press firmly to seat the backplane connector.

Tighten the mounting hardware to ensure secure placement.

Connect analog wiring according to the specific signal type supported by the process.

Re-energize the system and verify module detection through the controller configuration software.

Calibrate input channels as needed before operational use.

Maintenance Recommendations

Periodically check terminal blocks for looseness or oxidation.

Keep the control cabinet clean and free of conductive dust.

Ensure all analog wiring remains shielded and properly grounded.

Regularly review diagnostic logs for abnormal readings or drift.

Replace the module only with genuine ABB components to maintain full system compatibility.

Additional Notes

The ABB AI04 provides a dependable and accurate method for capturing analog data, supporting high-value industrial processes with precision, stability, and long operational life. Its rugged design and flexible application range make it a foundational module in many ABB automation systems.
