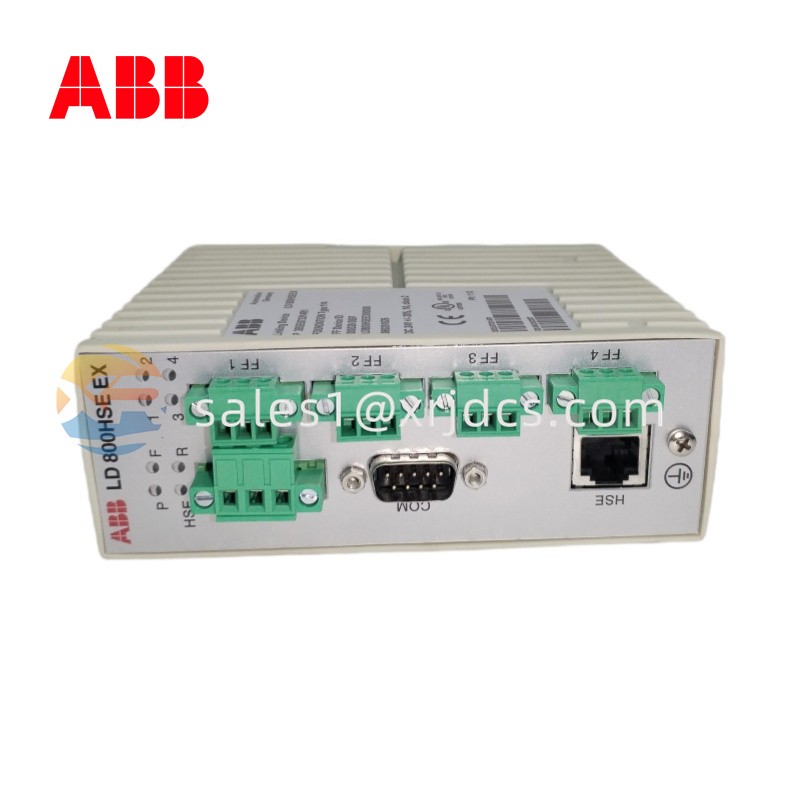

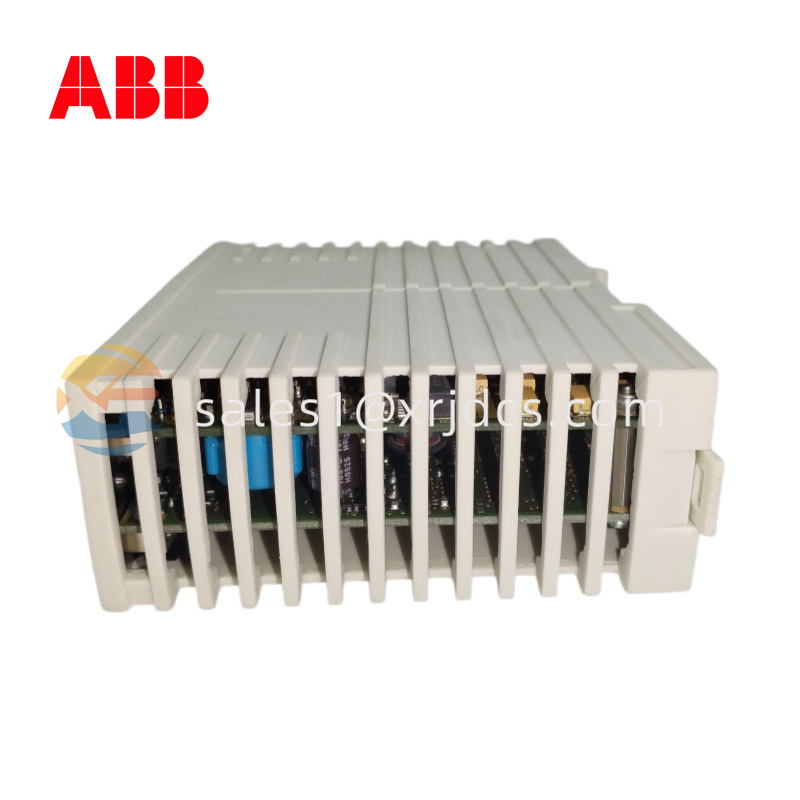

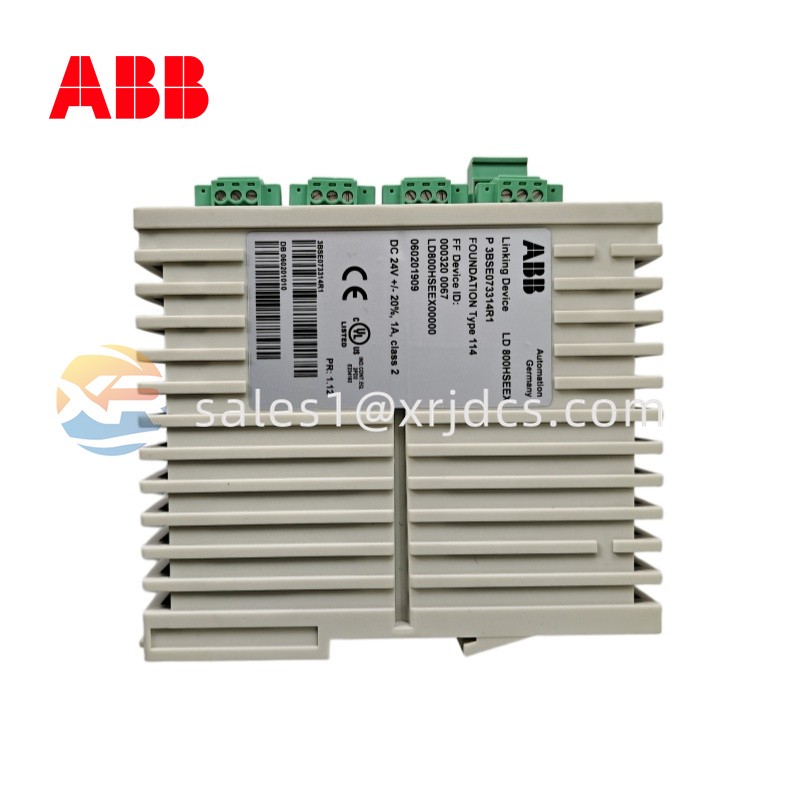

ABB LD800HSEEX 3BSE073314R1 FOUNDATION Fieldbus Linking Device

Product Summary

The ABB LD800HSEEX 3BSE073314R1 is an industrial‑grade FOUNDATION Fieldbus linking device that bridges high‑speed Ethernet (HSE) with multiple fieldbus H1 segments, enabling robust communication between controllers and field instruments in process automation systems. This version (EX) is specifically certified for installation in hazardous area Zone 2 environments under both ATEX and IECEx standards, expanding its applicability in safety‑critical industries.

Key Features

High‑Speed Fieldbus Integration: Connects up to four H1 segments to a single Ethernet backbone (HSE).

Hazardous Area Certification: Suitable for Zone 2 classified areas, meeting ATEX/IECEx requirements.

DIN Rail Mounting: Compact design facilitates easy installation in control panels or field enclosures.

Auto‑Sensing Ethernet Port: Supports 10/100 Mbps auto‑negotiation for flexible network setup.

Galvanically Isolated H1 Interfaces: Improves signal integrity and noise immunity.

Low Power Consumption: Efficient design for reduced energy usage.

Redundancy Capability: Supports redundant configurations when paired with linking cables (sold separately).

Technical Specifications

Structural & Functional Details

The LD800HSEEX features a modular design built for industrial control environments. Its robust housing supports DIN rail mounting, minimizing panel space usage. The device integrates multiple interfaces:

HSE (Ethernet): Connects with automation networks, supplying high‑speed backbone communication.

H1 Fieldbus Ports: Four separate segments allow connection of numerous FOUNDATION Fieldbus devices.

Power Interface: Requires an external 24 V DC supply, with fieldbus link segments powered independently.

Galvanic isolation between H1 channels and internal circuitry improves resilience against electrical noise and reduces interference risks in complex installations.

Application Areas

The LD800HSEEX is widely deployed in industrial automation systems, including:

Process Automation: Enables data exchange between field instruments and DCS/PLC systems via Ethernet/HSE.

Oil & Gas Operations: Zone 2 certification makes it suitable for hazardous plant areas.

Petrochemical and Chemical Plants: Facilitates real‑time control and diagnostics over FOUNDATION Fieldbus.

Manufacturing and Utilities: Integrates multiple fieldbus segments into centralized automation architectures.

Installation Guidelines

Mounting: Install on a standard 35 mm DIN rail within control cabinets or approved enclosures.

Power: Connect a stable 24 V DC supply; ensure fieldbus H1 links are powered separately according to system design.

Network Wiring: Connect Ethernet to HSE backbone and H1 links to individual fieldbus segments.

Hazardous Area Compliance: Follow ATEX/IECEx wiring and grounding rules for Zone 2 environments.

Good grounding and appropriate shielding for communication cables help maintain signal quality and avoid noise interference.

Maintenance & Diagnostics

Routine maintenance for the LD800HSEEX is minimal. Recommended actions include:

Periodic visual checks of connectors and wiring tightness.

Monitoring communication status via linked automation system diagnostics.

Verifying power supply health and signal integrity during scheduled system checks.

Stable operation in challenging environments is ensured by the device’s industrial‑grade design.

Benefits & Value Proposition

The ABB LD800HSEEX 3BSE073314R1 provides reliable, fieldbus‑to‑Ethernet integration that supports modern automation architectures. Its certification for hazardous environments, modular DIN‑rail design, and multi‑segment connectivity make it an ideal choice for complex industrial systems requiring both Fieldbus H1 reach and Ethernet HSE speed.
