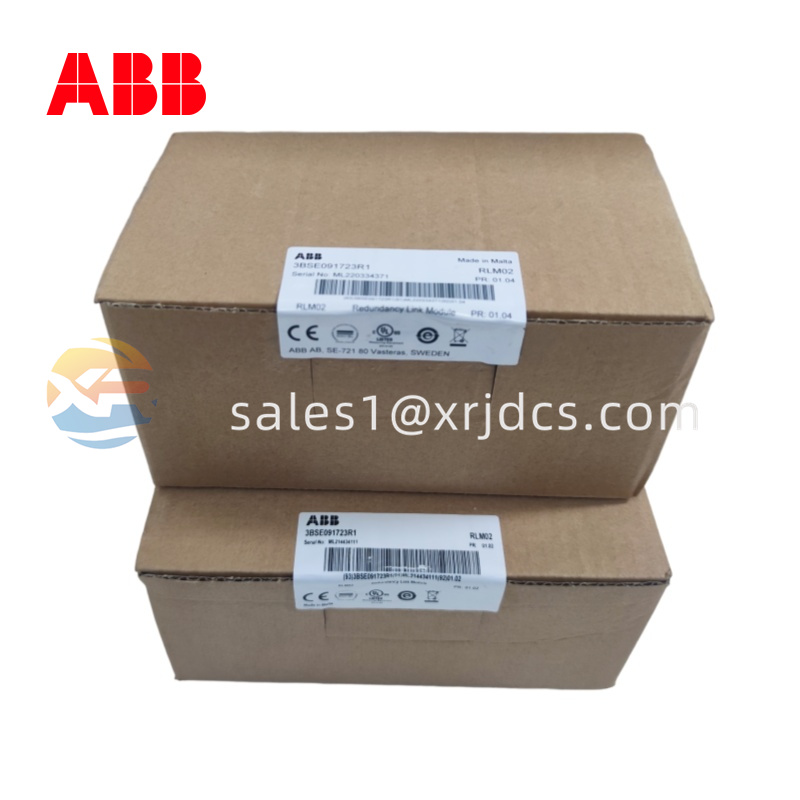

ABB RLM02 PROFIBUS Redundancy Link Module
Product Overview
The ABB RLM02 is an industrial redundancy link module designed to enhance the reliability and availability of PROFIBUS DP/FMS communication networks. It plays a critical role in process automation systems where network uptime and fault tolerance are essential, such as manufacturing control systems and large distributed control system (DCS) installations.
This module enables seamless handling of redundant communication paths and supports robust data transfer even in fault scenarios, helping maintain continuous operation of automation networks without data loss or costly downtime.
Core Functionality
Protocol Support: PROFIBUS DP and FMS communication standards
Redundancy Handling: Converts a non‑redundant PROFIBUS line into two redundant RS‑485 lines (A and B) or vice versa
Automatic Line Switching: Monitors communication links and switches automatically to the backup path on failure
Repeater Capability: Acts as a signal repeater to maintain signal level over longer distances
Error Reporting: Status and error indications via LEDs and a signaling contact
Flexible Placement: Can be installed after a master, before segments with multiple slaves, or in front of individual slave devices
Technical Specifications
| Feature |
Specification |
| Model |
RLM02 |
| Manufacturer |
ABB |
| Product Type |
PROFIBUS Redundancy Link Module |
| Communication Standard |
PROFIBUS DP / FMS |
| Transmission Rate |
9.6 kbit/s to 12 Mbit/s |
| Ports |
A, B and M PROFIBUS ports |
| Power Supply |
24 V DC (±20 %) |
| Current Consumption |
~120 mA at 24 V DC |
| Alarm Outputs |
Potential‑free contact for error signaling |
| Operating Temp. |
≈ 0 °C to 55 °C |
| Storage Temp. |
–30 °C to 85 °C |
| Mounting |
DIN‑rail mount (industry standard) |
| Weight |
~0.33–0.60 kg approx. |
| Protection Class |
IP20 (indoor installation typical) |
Structural & Design Highlights
The RLM02 features a compact, DIN‑rail‑mounted design that simplifies integration into existing automation cabinets. It has multiple PROFIBUS connection ports labeled A, B, and M, enabling flexible network topology and easy installation. The module includes LED indicators to monitor line activity and error states at a glance.
Inside, the redundancy logic continuously observes the status of communication links. On detecting a fault in one line, the module automatically reroutes traffic to the operational backup line, maintaining smooth network communication with minimal interruption.
Application Scenarios
This module is used in industrial automation networks where communication reliability is critical:
DCS and PLC Automation Systems – Ensuring communication continuity between controllers and field devices
Factory Automation – Maintaining network availability in high‑speed production environments
Process Control Installations – Enhancing fault tolerance for PROFIBUS DP communication links
Redundant Control Architectures – Supporting high‑availability configurations where a single link failure must not halt system operations
By enabling redundant communication paths, RLM02 significantly improves system uptime and reduces the risk of production losses due to network failures.
Installation & Maintenance
Installation Tips
Mount the RLM02 on a DIN rail inside a shared control cabinet with other PROFIBUS components.
Ensure the module is powered by a stable 24 V DC supply.
Connect the PROFIBUS DP lines (A, B, and M) according to network architecture diagrams.
Maintenance Practices
Regularly check LED status indicators to ensure line health.
Inspect wiring and connector integrity to prevent signal degradation.
Verify alarm contact signals with the central monitoring system as part of preventive maintenance.
