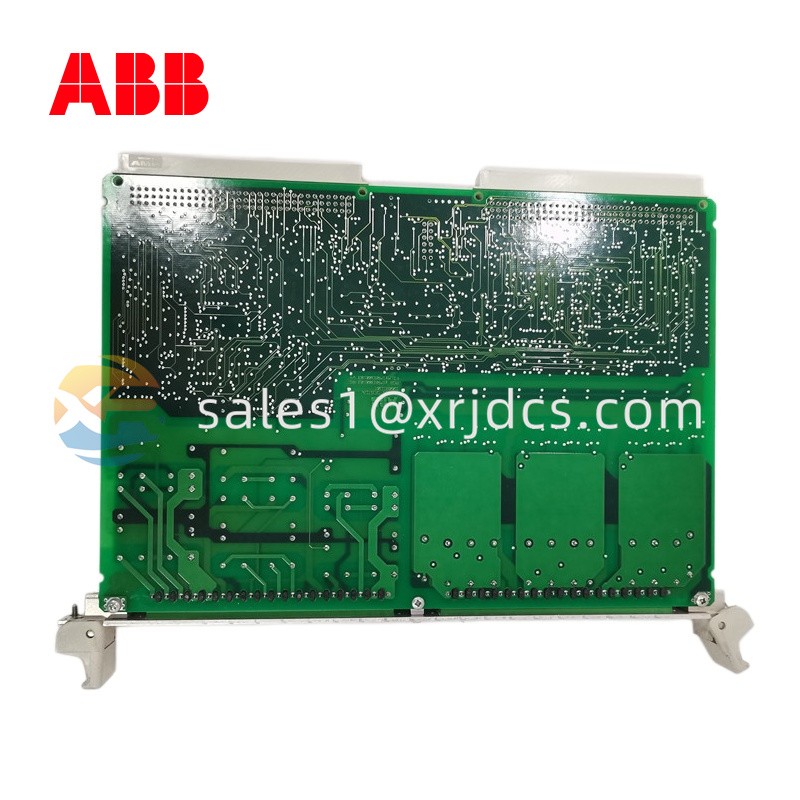

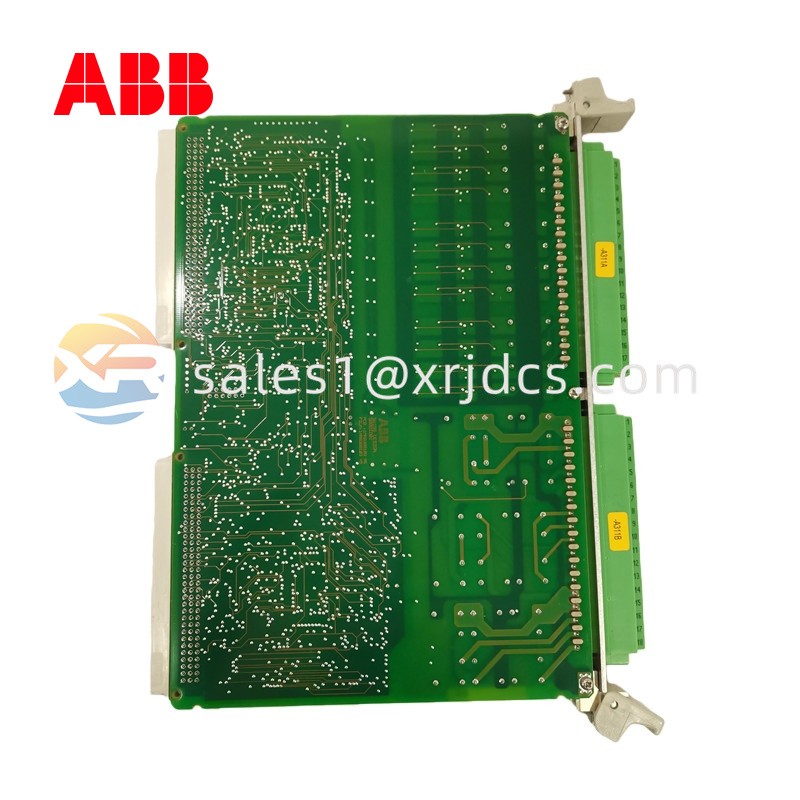

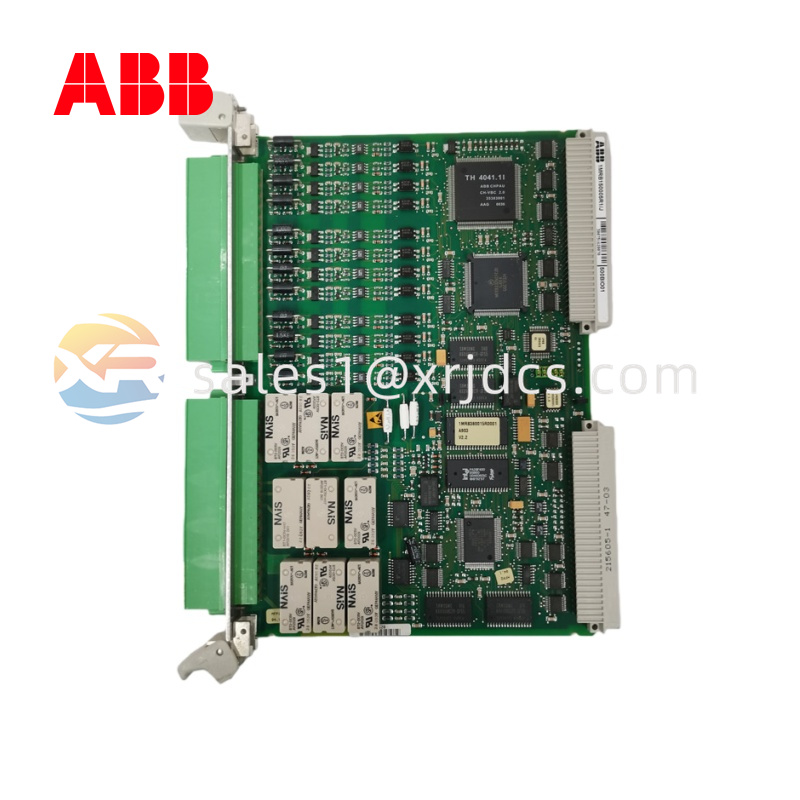

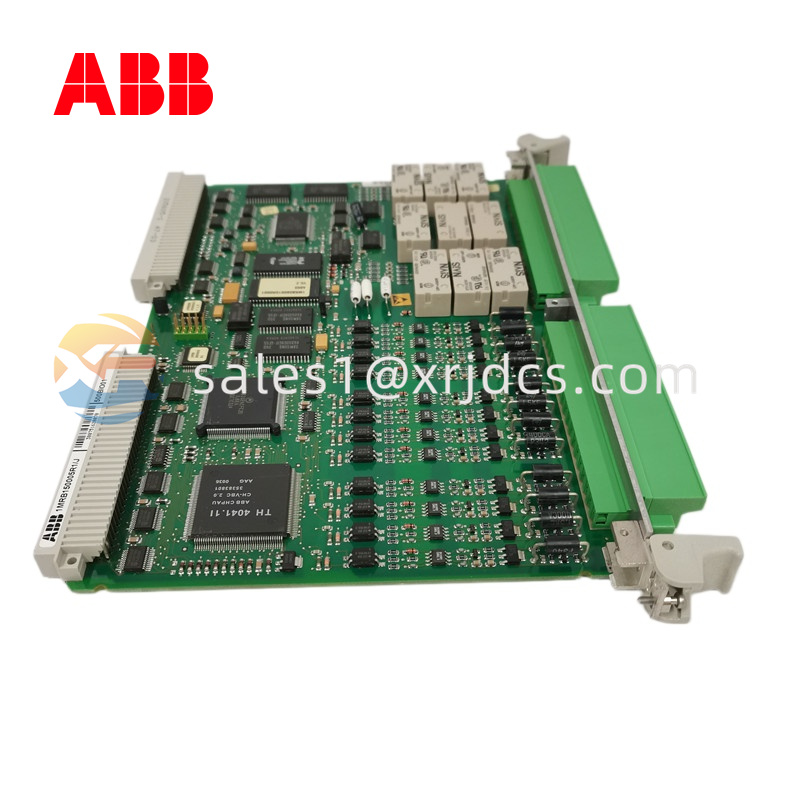

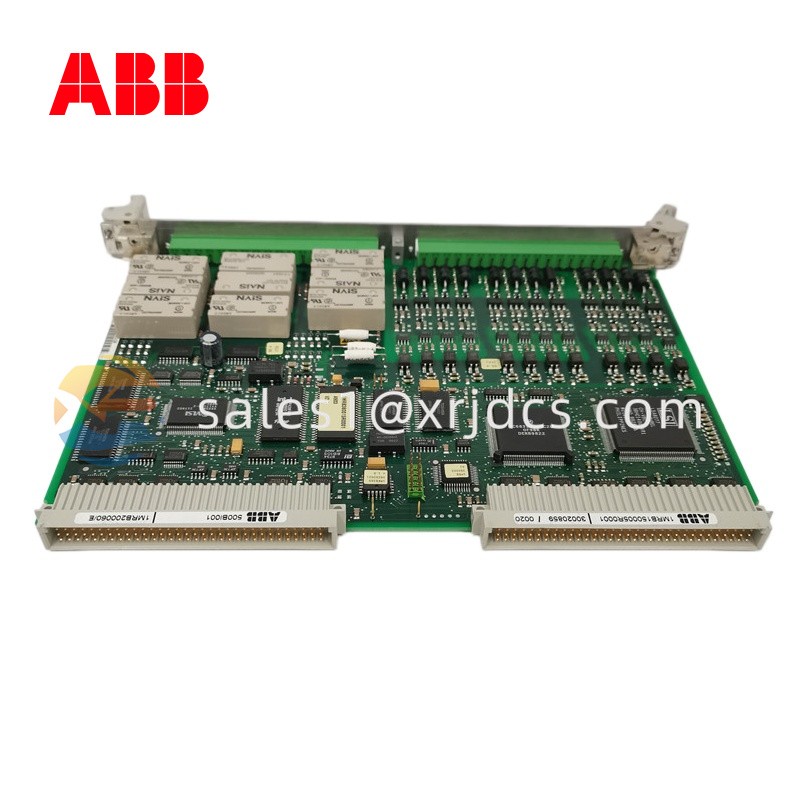

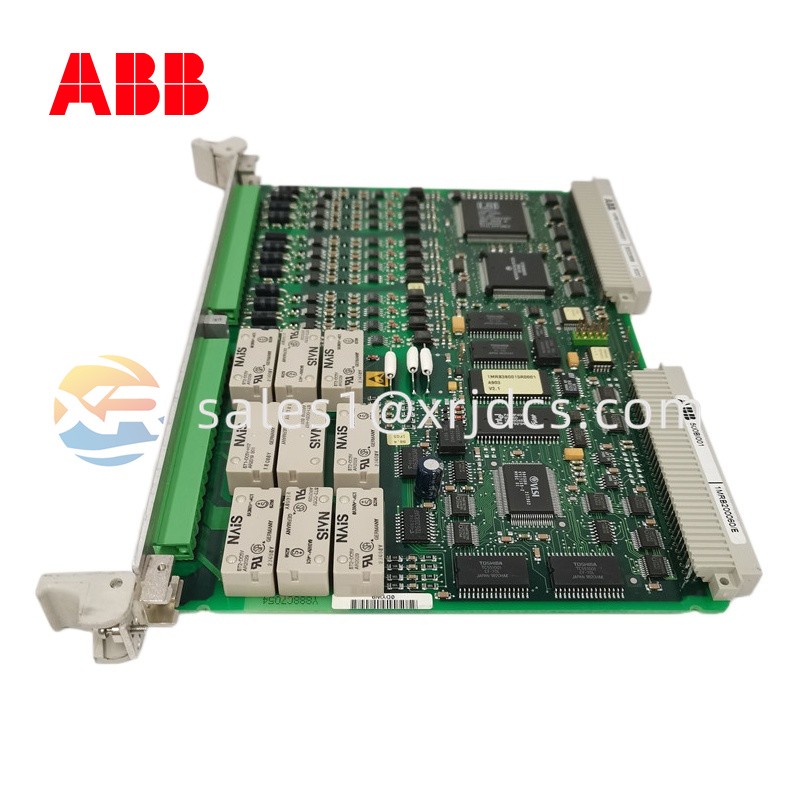

ABB 500BIO01 – Industrial I/O Expansion Module
The ABB 500BIO01 (1MRB150005R1/J) is a flexible and rugged basic input/output (I/O) module designed for industrial automation applications. It is part of the ABB AC 500 series PLC platform and provides reliable signal acquisition and control interfaces for modern control systems.
What This Module Is For
The 500BIO01 serves as a core building block for field signal integration in distributed control and automation systems. It handles digital and analog I/O, enabling seamless communication between sensors, actuators, and the main PLC controller.
Typical Use Cases
Connecting field-level sensors and switches to PLC logic
Interfacing actuators and relays for process control
Supporting distributed I/O architectures in large control systems
Extension of PLC capabilities for machine and process automation
Technical Overview
Core Function
The 500BIO01 module operates as a mixed I/O interface, capable of receiving and driving various signal types within a PLC system. It is typically powered by 24 V DC and designed to provide isolation and noise immunity in industrial environments.
Signal Handling
Digital Inputs (DI) – Interfaces with discrete sensors and switches
Digital Outputs (DO) – Drives relays, indicators, or other digital devices
Analog Inputs/Outputs (optional) – Handles 4–20 mA or ±10 V signals (model-dependent) for sensor data and control feedback
Electrical Characteristics (Typical)
Power Supply: +24 V DC with protection against polarity reversal
Signal Isolation: Optically isolated channels to minimize interference
Noise Immunity: Meets standard industrial EMC requirements for stable performance
Design & Structure
The 500BIO01 is built with modularity and serviceability in mind. Its architecture includes:
DIN-rail mountable housing suitable for control cabinets
Terminal blocks for quick connection and expansion
LED indicators for diagnostics (power, communication state, channel status)
Hot-swappable connectors enabling maintenance without system shutdown
This modular design simplifies integration into existing control racks and supports field wiring management.
Installation & Configuration
To install the 500BIO01 module:
Snap it onto a 500 series DIN rail mounting base.
Connect field wiring (sensors/actuators) to the designated terminals.
Link the module with a 500SCM01 coupler or compatible interface.
Configure channel types and logic in ABB Automation Builder software.
Verify signal mapping and test each I/O point before full system operation.
Operational Benefits
Scalable Architecture: Easily expands I/O capacity of AC 500 PLC systems
Modular Flexibility: Supports mixed signal types without extra components
High Reliability: Designed for continuous operation in industrial environments
Simplified Maintenance: Hot-pluggable design reduces downtime
Compatibility and Integration
The 500BIO01 is engineered to operate within the ABB AC 500 PLC ecosystem, linking to controllers such as PM5xx series via couplers like the 500SCM01. Configurations and signal mapping are typically managed through Automation Builder or control system software suites supported by ABB.
