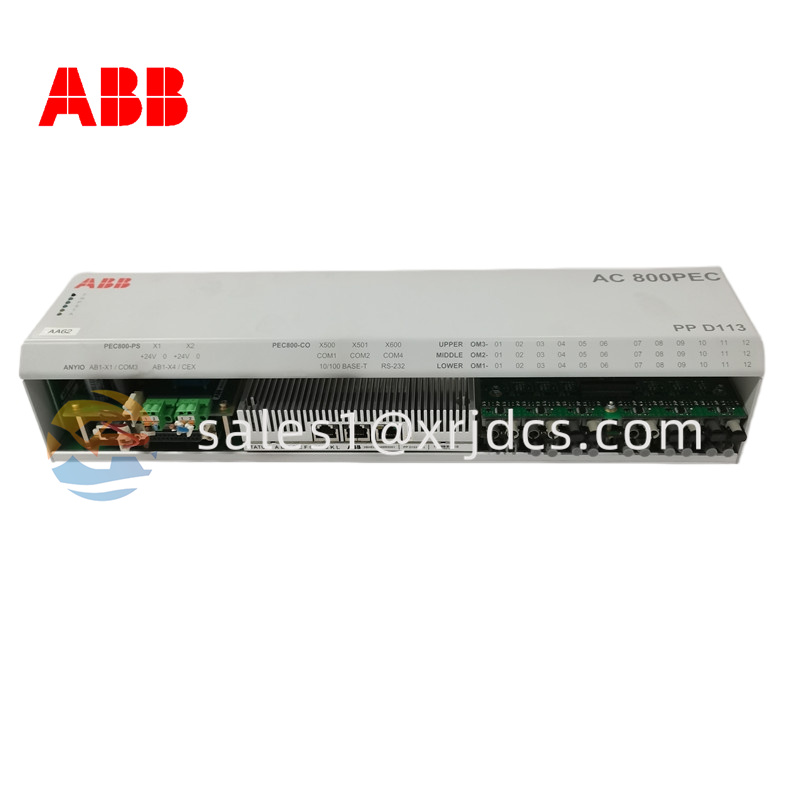

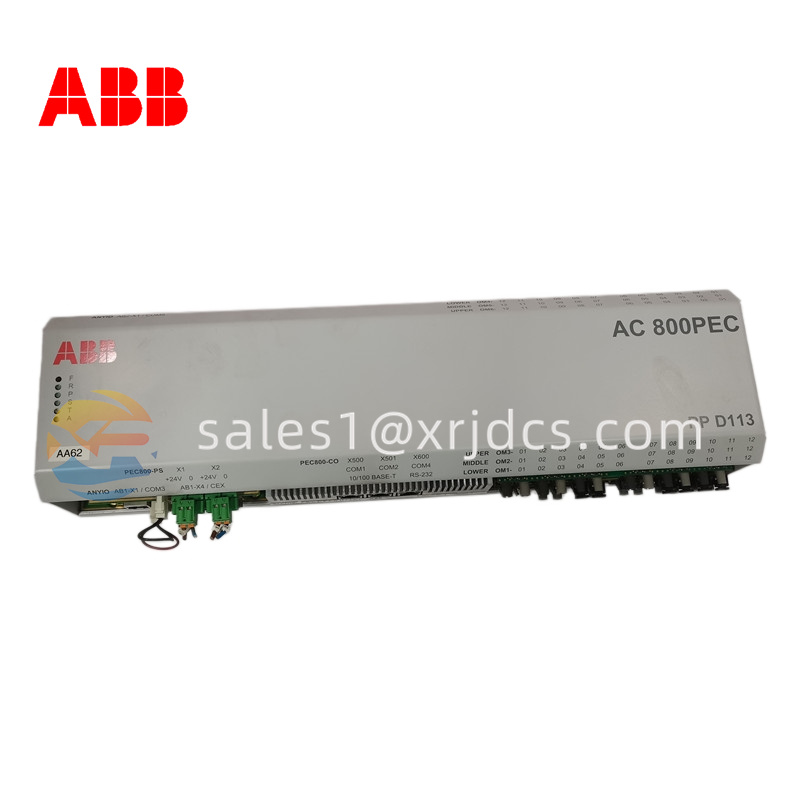

ABB 3BHE023784R1023 AC 800PEC Controller / Power Module
Overview
The ABB 3BHE023784R1023 (commonly associated with PPD113B01-10-150000) is a high-performance industrial controller and power module used within the ABB AC 800PEC control system. It is specifically engineered for demanding power electronics applications, combining advanced control processing with stable power supply capabilities.
This module plays a central role in high-speed automation systems, particularly where precise control cycles and reliable power delivery are required.
Core Functions
The 3BHE023784R1023 module integrates both control and power-related functionalities:
High-speed Control Processing: Executes complex algorithms for real-time industrial control
Stable DC Power Output: Converts AC input into regulated DC supply for system components
Communication Management: Enables data exchange between I/O modules and higher-level systems
Distributed Control Support: Facilitates parallel processing across system architecture
Key Features
Dual Capability Design: Combines controller and power module functions in one unit
High Efficiency Power Conversion: Provides stable 24V DC output for control systems
Wide Voltage Input Range: Supports global industrial power standards
Advanced Processing Architecture: Utilizes high-performance CPU/FPGA-based control
Strong Anti-Interference Performance: Fiber and industrial communication interfaces ensure reliable data transfer
High Reliability: Designed for harsh environments with surge and isolation protection
Technical Specifications
| Parameter |
Details |
| Model |
3BHE023784R1023 |
| Associated Type |
PPD113B01-10-150000 |
| Product Type |
Controller / Power Module |
| System |
ABB AC 800PEC |
| Input Voltage |
110–250V AC (typical range) |
| Output Voltage |
24V DC |
| Output Current |
Up to 15A |
| Power Rating |
Approx. 360W |
| Processor |
High-performance RISC / ARM-based CPU |
| Memory |
~1 GB RAM, 8 GB storage (typical) |
| Communication |
Ethernet, RS-422/485, fieldbus, fiber links |
| Operating Temperature |
-20°C to +70°C (typical industrial range) |
| Protection |
Surge protection, isolation up to 1500VAC |
Design & Internal Structure
The module features a highly integrated and modular architecture:
CPU + FPGA Core: Enables ultra-fast control cycles (down to microseconds level)
Power Conversion Unit: Converts AC input into stable DC output for system components
Fiber Communication Interfaces: Ensure high-speed and interference-resistant data transmission
I/O Expansion Interfaces: Allow flexible system configuration and scalability
Protection Circuits: Include overload, short-circuit, and surge protection
This design ensures both computational power and electrical stability within a single module.
Application Fields
The 3BHE023784R1023 is widely used in industries requiring high-speed and high-reliability control:
Power electronics and converter systems
Power generation and grid control
Traction and transportation systems
Oil & gas and heavy industry
Large-scale industrial automation and process control
It is especially suitable for applications with fast dynamic response requirements, such as drives, rectifiers, and excitation systems.
Installation & Commissioning
For optimal operation:
Install within ABB AC 800PEC-compatible racks or cabinets
Ensure proper grounding and electrical isolation
Verify AC input voltage stability before energizing
Use shielded communication cables for noise-sensitive environments
Configure system parameters using ABB engineering tools
Maintenance & Service
To ensure long-term reliability:
Regularly monitor system diagnostics and status indicators
Inspect power connections and cooling conditions
Keep firmware and control software updated
Clean dust accumulation in control cabinets
Replace modules only with certified ABB components
Additional Notes
The ABB 3BHE023784R1023 stands out as a powerful hybrid solution combining control intelligence with power supply functionality. Its integration into the AC 800PEC system allows engineers to achieve high-speed, precise, and reliable control in complex industrial environments.
