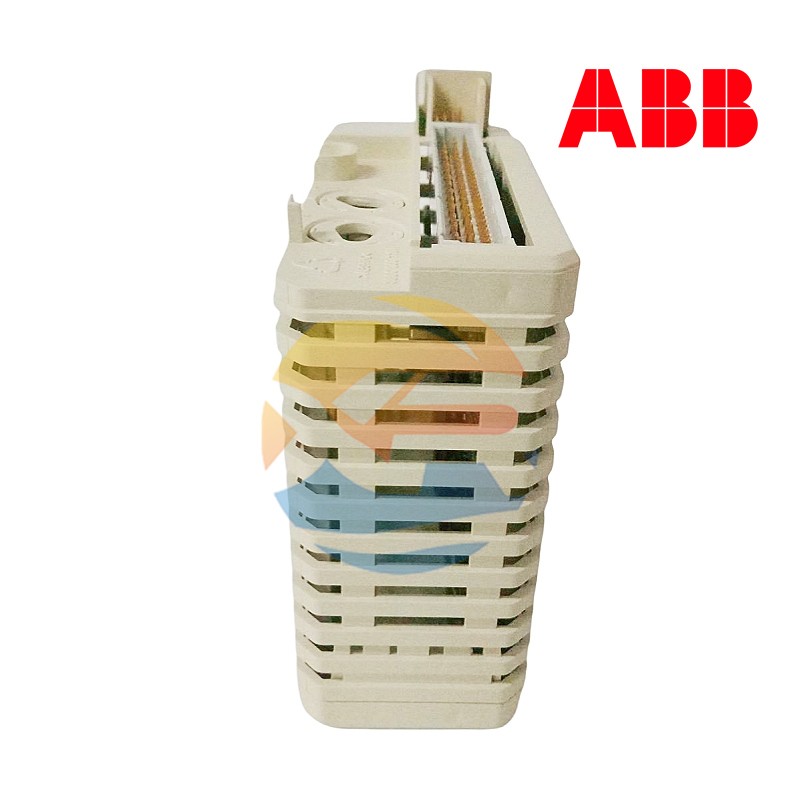

Model：ABB AI810 3BSE008516R1 Analog Input Module

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Product Type Analog Input Module
Number of Channels 8 channels
Input Signal Types 0–10 V, 4–20 mA (configurable)
Resolution High-resolution analog conversion
Isolation Channel-to-channel and system isolation
Mounting Type DIN rail / rack-mounted
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C

ABB AI810 3BSE008516R1 Analog Input Module

Overview

The ABB AI810 3BSE008516R1 is a high-precision analog input module designed for use in ABB distributed control systems (DCS). It is engineered to accurately acquire and process analog signals from field devices, ensuring reliable data transmission for monitoring and control applications. With its stable performance and industrial-grade design, this module is widely applied in process automation environments.

Applications

The AI810 module is ideal for industries where accurate signal measurement is critical:

Oil & gas processing systems
Power generation plants
Chemical and petrochemical facilities
Water and wastewater treatment
General industrial automation systems

Key Features

High-Accuracy Signal Acquisition for voltage and current inputs
Multi-Channel Input Capability enabling efficient data collection
Strong Noise Immunity ensures stable readings in harsh environments
Seamless Integration with ABB control systems
Reliable Isolation Design protects against electrical interference
Compact Module Structure for space-saving installation

Technical Specifications

Parameter	Description
Model	AI810 3BSE008516R1
Manufacturer	ABB
Product Type	Analog Input Module
Number of Channels	8 channels
Input Signal Types	0–10 V, 4–20 mA (configurable)
Resolution	High-resolution analog conversion
Isolation	Channel-to-channel and system isolation
Mounting Type	DIN rail / rack-mounted
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C

Structure & Composition

The module consists of precision analog-to-digital conversion circuits, signal conditioning components, and communication interfaces. Each channel is carefully designed to maintain signal integrity and reduce interference. The robust housing protects internal components while allowing efficient heat dissipation for long-term reliability.

Installation & Configuration

Installation of the ABB AI810 is straightforward and supports quick integration into ABB automation systems. The module can be mounted on standard rails or racks and connected via terminal blocks. Configuration is typically performed through the control system software, allowing users to define input ranges and scaling parameters.

Maintenance Guidelines

To ensure continuous and accurate performance, routine maintenance is recommended:

Verify signal wiring and terminal connections
Inspect for dust or environmental contamination
Check calibration and system diagnostics periodically
Replace only with original ABB components when necessary

Additional Benefits

The ABB AI810 3BSE008516R1 offers a reliable and efficient solution for analog signal acquisition. Its precision, flexibility, and durability make it an essential component in modern automation systems, helping improve process accuracy and operational efficiency.
