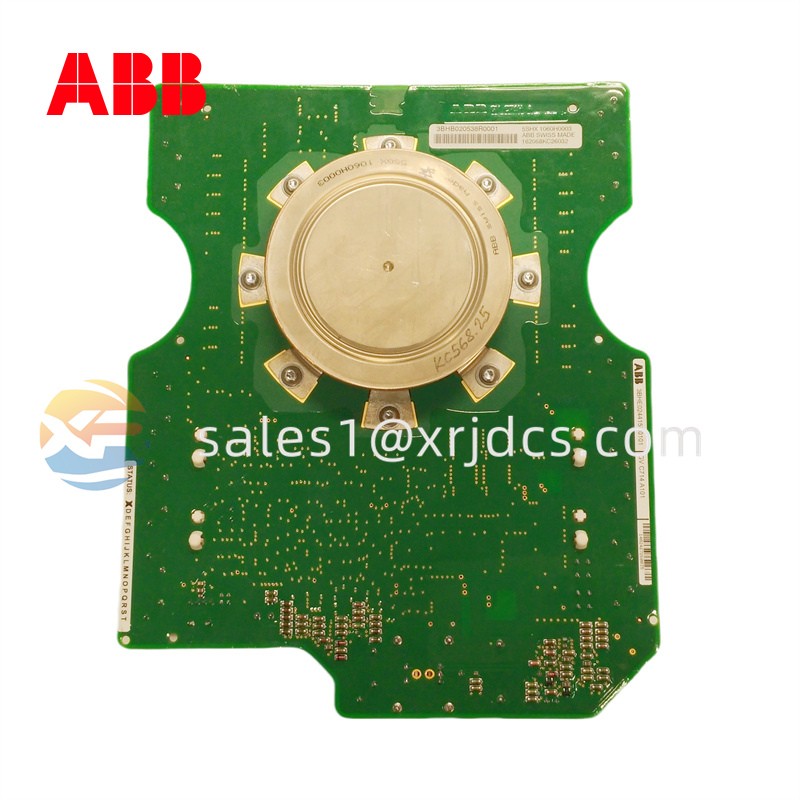

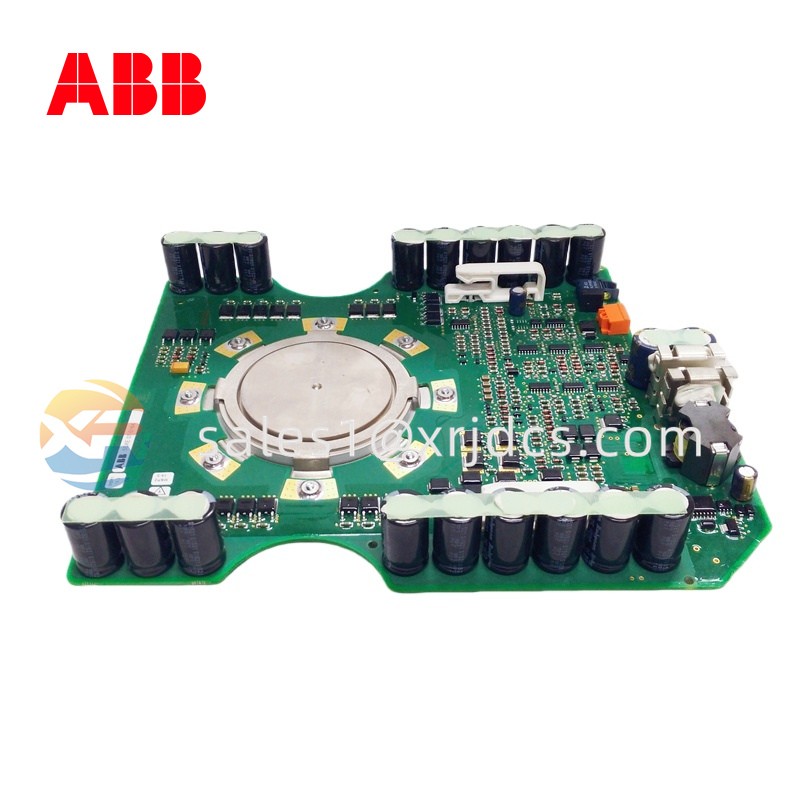

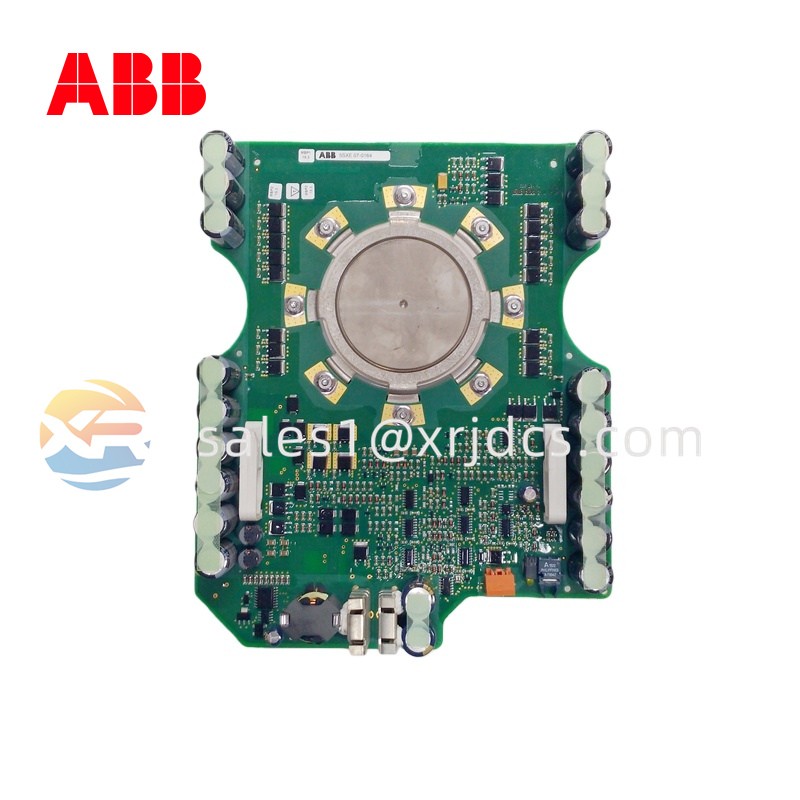

ABB 3BHB020538R0001 5SGX1060H00003E IGCT Power Semiconductor Module

Overview

The ABB 3BHB020538R0001 5SGX1060H00003E is a high-power IGCT (Integrated Gate Commutated Thyristor) module, engineered for medium- and high-voltage industrial applications. Combining the advantages of thyristors and IGBTs, it delivers excellent switching performance, low conduction losses, and high reliability—making it a core component in advanced power electronics systems.

Technical Specifications

Key Features

• IGCT Technology Advantage – Combines high current capability of thyristors with fast switching of transistors
• Low Conduction Loss – Improves overall system efficiency in high-power applications
• High Reliability – Designed for continuous operation in extreme industrial environments
• Fast Switching Performance – Enables precise control in dynamic power systems
• Compact Press-Pack Design – Ensures efficient thermal management and mechanical robustness
• Advanced Protection Capability – Supports safe operation under overcurrent and voltage stress conditions

Structure and Composition

The module adopts a press-pack semiconductor structure, integrating:

• High-power IGCT chip
• Reverse-conducting diode within the same package
• Gate drive interface for fast turn-on/off control
• Thermal conduction layers for efficient heat dissipation

This compact and rugged architecture ensures low inductance, improved switching speed, and long operational life even under heavy electrical loads.

Functional Principle

The IGCT module operates by controlling large currents through a gate-driven switching mechanism. Unlike traditional thyristors, it can be actively turned off, enabling:

• Faster switching cycles
• Improved controllability
• Reduced system losses

This makes it ideal for modern power conversion systems requiring both efficiency and precision.

Application Areas

The ABB 3BHB020538R0001 module is widely used in high-power industrial sectors, including:

• Medium-voltage drives (e.g., ABB ACS5000 systems)
• Power converters and inverters
• Renewable energy systems (wind and solar power)
• Traction and railway drive systems
• Heavy industry (steel mills, mining, cement plants)
• Grid control and HVDC systems

Installation & Integration

This module is designed for integration into high-power converter systems and requires:

• Proper gate driver circuits for switching control
• Efficient cooling systems (air or liquid)
• Secure mechanical mounting for press-pack stability
• Careful insulation and high-voltage safety compliance

Correct installation is critical due to the high current and voltage levels involved.

Maintenance & Reliability

Although highly robust, periodic maintenance ensures optimal performance:

• Inspect cooling systems and thermal interfaces
• Monitor switching performance and electrical parameters
• Check gate driver connections and insulation integrity
• Replace only with original ABB-certified components

Its long lifecycle and rugged design significantly reduce downtime and maintenance costs.

Additional Advantages

The ABB 3BHB020538R0001 5SGX1060H00003E stands out as a core power semiconductor solution for modern industrial systems. Its ability to handle extreme electrical loads with high efficiency and precision makes it indispensable in high-power automation and energy conversion applications.
