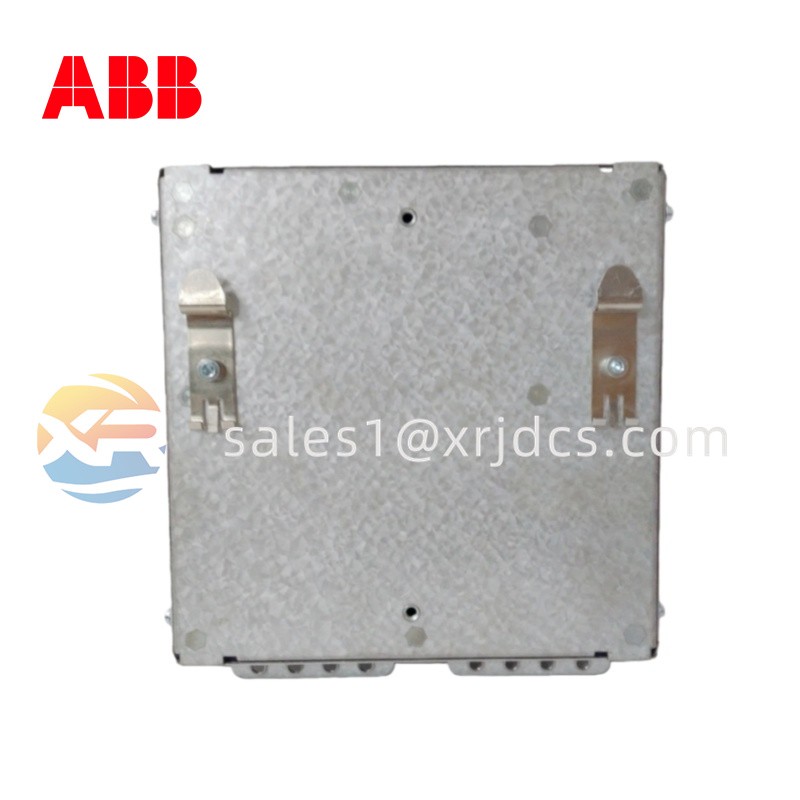

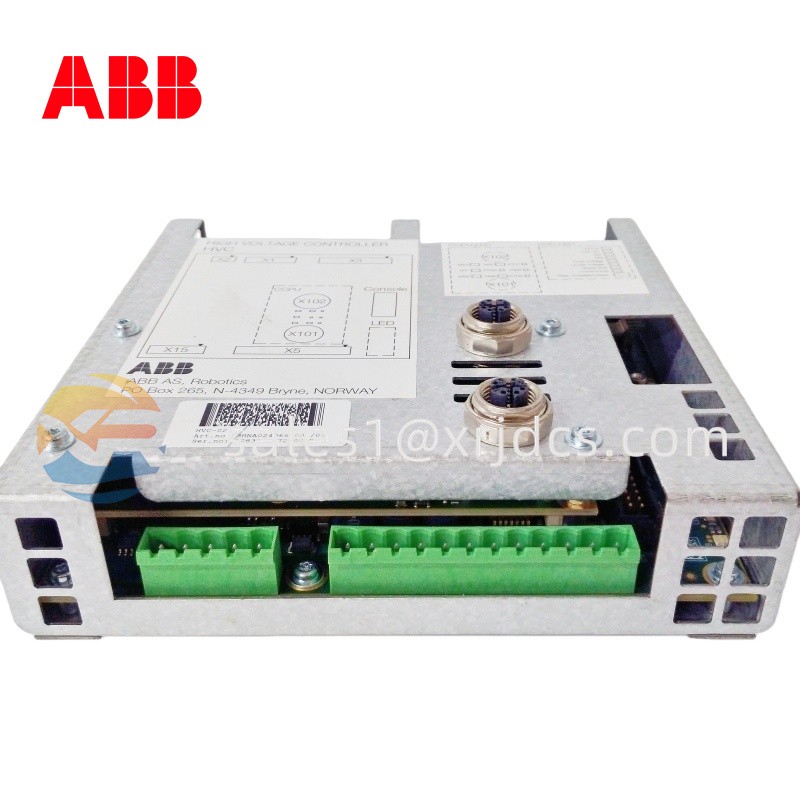

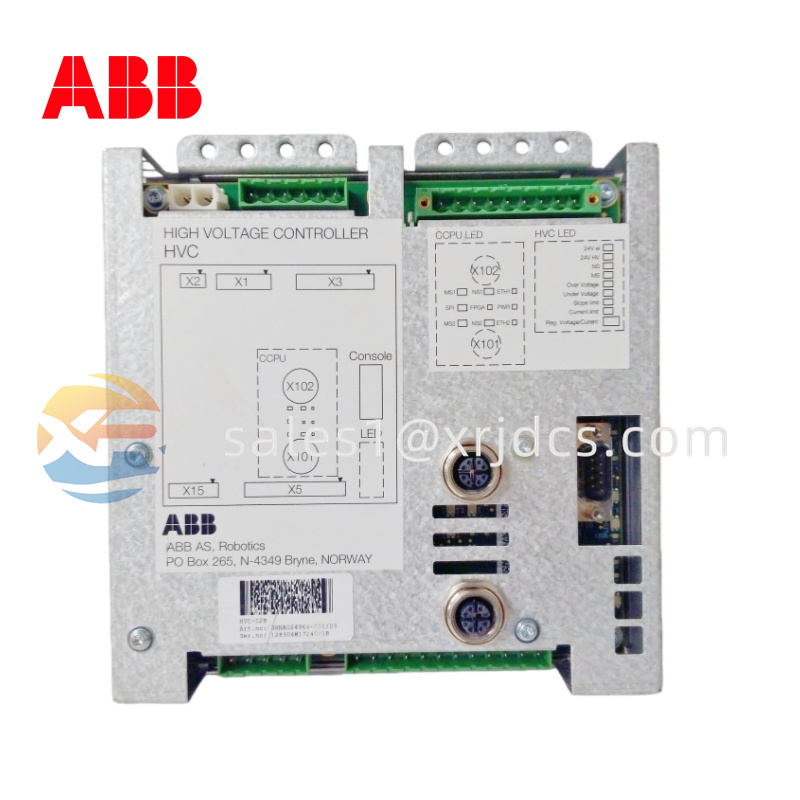

ABB HVC-02B High Voltage Controller / Control Module

Overview

The ABB HVC-02B is a high-performance industrial control module widely used in ABB automation and robotics systems, especially in industrial painting robots and electrostatic high-voltage applications. It is commonly associated with ABB robotic spray systems where precise high-voltage regulation is required for stable coating quality and process consistency.

In ABB painting systems, the HVC-02B typically functions as a high-voltage control unit (HVC controller) that regulates electrostatic voltage applied to spray guns, enabling efficient paint transfer and improved coating uniformity.

Product Type & Function

The HVC-02B is generally classified as a:

• High Voltage Controller Module
• Industrial Robot Control Component
• Electrostatic Spray Control Unit
• ABB AC500 / Robotics Control System Module (depending on configuration)

It is designed to integrate into ABB robot ecosystems and communicate with robot controllers to manage high-voltage output in real time.

Technical Specifications

Note: Exact electrical values may vary depending on robot system configuration and version.

Features

The ABB HVC-02B is engineered for precision and reliability in demanding industrial environments:

• High-precision electrostatic voltage control for spray applications
• Seamless integration with ABB robotic painting systems
• Real-time adjustment of high-voltage output during operation
• Built-in safety and fault detection mechanisms
• Modular architecture for easy replacement and maintenance
• Stable performance under continuous industrial operation

Structure and Internal Composition

The module is built as a robot-integrated electronic control unit, typically installed inside ABB robot controller cabinets.

It generally consists of:

• Control Processor Unit – Executes voltage regulation commands
• High-Voltage Control Circuit – Manages electrostatic output levels
• Signal Interface Board – Communication with robot controller system
• Protection Circuitry – Prevents overload, arcing, and system faults
• Power Regulation Section – Stabilizes internal operating voltage
• Industrial Enclosure – Shielded housing for EMI protection and durability

This architecture ensures stable performance in high-interference industrial environments such as spray booths.

Application Areas

The ABB HVC-02B is mainly used in advanced automation environments, including:

• Automotive painting robots
• Industrial electrostatic coating systems
• Heavy machinery surface finishing
• Manufacturing spray coating lines
• Precision coating applications in electronics or metal industries
• ABB robotic systems (e.g., paint robot platforms)

It is particularly common in ABB paint robot systems, where consistent coating quality and controlled electrostatic charging are critical.

Installation & Maintenance

Installation Guidelines

• Must be installed inside ABB-approved robot control cabinets
• Requires correct grounding to avoid electrostatic interference
• Integration with robot controller software is mandatory
• High-voltage safety procedures must be strictly followed
• Only qualified technicians should perform installation

Maintenance Recommendations

• Regular inspection of connector integrity and cable insulation
• Monitor system fault logs for voltage irregularities
• Keep cabinet clean and free from conductive dust
• Periodic calibration of voltage output (system-dependent)
• Replace module only with compatible ABB-certified units

Advantages in Industrial Use

• Improves paint transfer efficiency by optimizing electrostatic attraction
• Reduces paint waste and overspray
• Enhances coating uniformity and surface quality
• Increases production efficiency in automated painting lines
• Reliable long-term operation in continuous production environments

Summary

The ABB HVC-02B is a specialized high-voltage control module primarily used in ABB robotic painting systems. It plays a crucial role in managing electrostatic spray voltage, ensuring high-quality coating results and stable automation performance.
