Product Overview

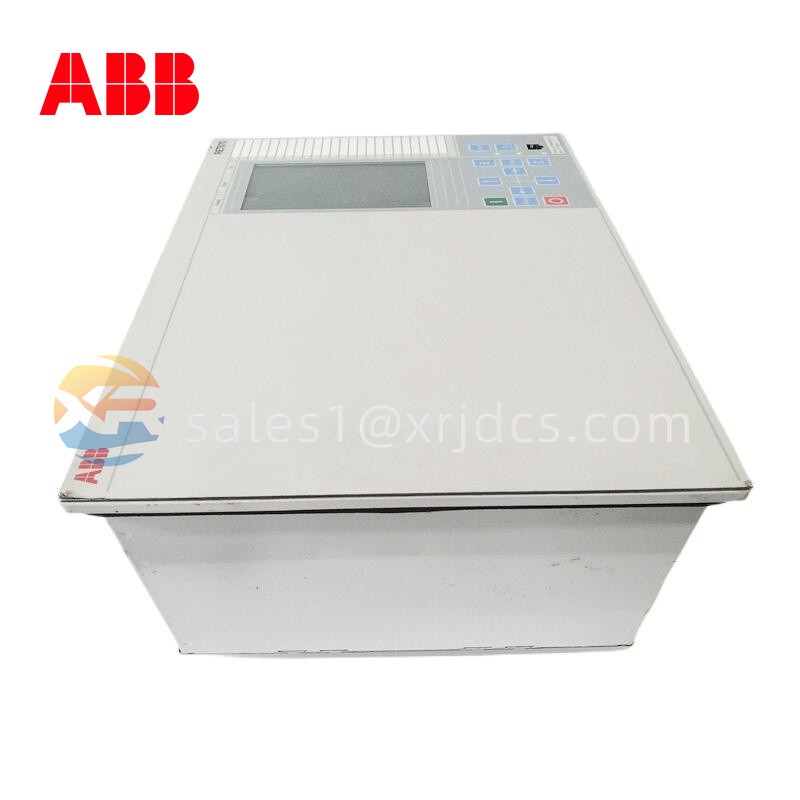

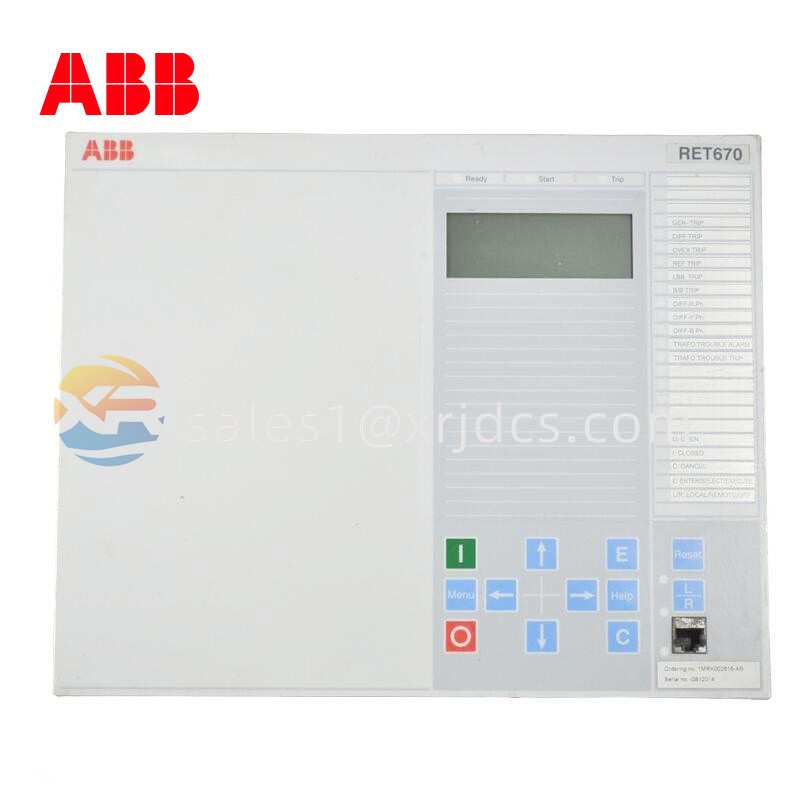

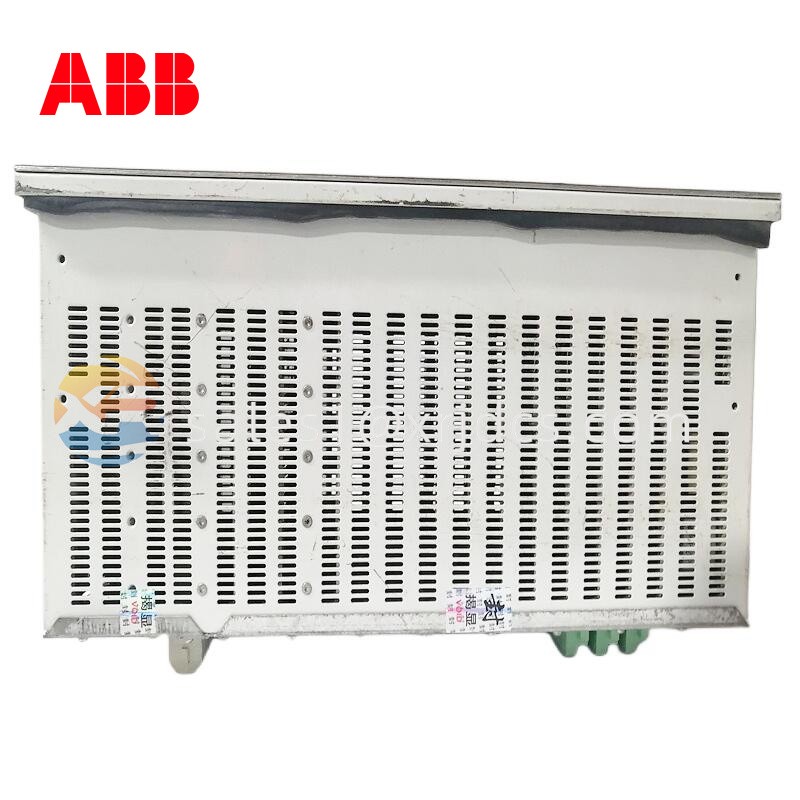

The ABB 1MRK004816-AC is a high-performance RET670 Transformer Protection and Control Intelligent Electronic Device (IED) from ABB’s Relion® 670 Series. It is designed specifically for advanced transformer protection, monitoring, and control applications in high-voltage power networks. The device provides comprehensive protection functions for two-winding transformers with a single circuit breaker configuration, helping utilities and industrial power systems achieve safe, stable, and reliable operation.

The RET670 series represents ABB’s advanced protection relay technology, combining powerful digital processing, flexible protection functions, communication capabilities, and precise measurement technology. The ABB 1MRK004816-AC is commonly applied in substations, power generation facilities, industrial power distribution networks, and transmission systems where transformer reliability is critical.

Transformers are among the most important components in electrical power systems. Any internal fault, winding problem, insulation failure, or abnormal operating condition can cause significant equipment damage and power interruptions. The ABB RET670 1MRK004816-AC continuously monitors transformer conditions and provides fast protective actions when abnormal situations occur.

With advanced differential protection, monitoring functions, and communication capabilities, this IED helps operators improve grid reliability, reduce equipment downtime, and extend transformer service life.

Basic Product Information

Functional Description

The main function of the ABB RET670 1MRK004816-AC is to protect and control power transformers by continuously analyzing electrical parameters and detecting abnormal operating conditions.

The relay receives measurement signals from current transformers (CTs), voltage transformers (VTs), and other field devices. Using advanced digital algorithms, it evaluates transformer operating conditions and determines whether protective actions are required.

The device can perform functions including:

• Transformer differential protection
• Overcurrent protection
• Earth fault protection
• Voltage supervision
• Breaker control
• Disturbance recording
• Event logging
• Measurement and monitoring

When a transformer fault occurs, the RET670 can rapidly send a trip command to the circuit breaker, isolating the faulty equipment and preventing further damage.

Protection Technology and Operating Features

Advanced Transformer Differential Protection

One of the most important functions of the ABB RET670 is transformer differential protection.

Differential protection compares electrical currents entering and leaving the transformer. Under normal operating conditions, these currents remain balanced. When an internal transformer fault occurs, the current difference increases significantly, allowing the relay to quickly identify the fault.

This protection function helps detect:

• Transformer winding faults
• Internal short circuits
• Phase-to-phase faults
• Ground faults

Fast and accurate differential protection is essential for protecting expensive transformer assets.

Comprehensive Backup Protection

In addition to main transformer protection, the RET670 provides backup protection functions.

These include:

• Overcurrent protection
• Earth fault protection
• Circuit breaker failure protection
• Voltage monitoring

Backup protection ensures additional safety when primary protection functions or external devices experience problems.

Intelligent Monitoring Capability

The ABB 1MRK004816-AC provides extensive monitoring functions for transformer condition assessment.

The relay can monitor:

• Electrical measurements
• Protection status
• Fault records
• Operating events
• System alarms

These functions allow maintenance teams to analyze equipment performance and perform preventive maintenance.

Hardware Structure and Design

Digital Processing Unit

The core of the RET670 is a powerful digital processor designed for high-speed protection calculations.

The processing system handles:

• Real-time signal analysis
• Protection algorithm execution
• Communication management
• Event recording

The high-performance architecture ensures fast response times during fault conditions.

Suitable for Modern Power Systems

The RET670 is designed for applications ranging from utility substations to industrial electrical networks.

It supports modern requirements such as:

• Digital substation applications
• Advanced protection coordination
• Condition monitoring
• Remote operation

Reduced Maintenance Costs

Through self-monitoring and diagnostic functions, the RET670 helps maintenance teams identify issues quickly.

Benefits include:

• Faster troubleshooting
• Reduced inspection workload
• Improved maintenance planning
• Increased equipment availability

Application Fields

Electrical Substations

The ABB RET670 1MRK004816-AC is widely used in transmission and distribution substations.

Typical applications include:

• Transformer protection
• Substation automation
• Grid reliability improvement
• Protection coordination

Power Generation Plants

Power plants depend on transformer protection systems to maintain stable electricity production.

Applications include:

• Generator step-up transformer protection
• Auxiliary transformer protection
• Plant electrical system monitoring

Industrial Power Systems

Large industrial facilities require reliable transformer protection to prevent production interruptions.

Typical industries include:

• Petrochemical plants
• Steel manufacturing
• Mining facilities
• Large factories

Product Value and Supply Information

The ABB 1MRK004816-AC RET670 Transformer Protection IED is a reliable and advanced solution for protecting two-winding transformers in demanding power applications. With powerful protection functions, flexible communication, intelligent monitoring, and ABB’s proven protection technology, it provides an effective solution for modern electrical systems.

For customers maintaining ABB Relion 670 series systems, the RET670 1MRK004816-AC is an important spare and replacement component that helps maintain stable operation of critical power infrastructure.
