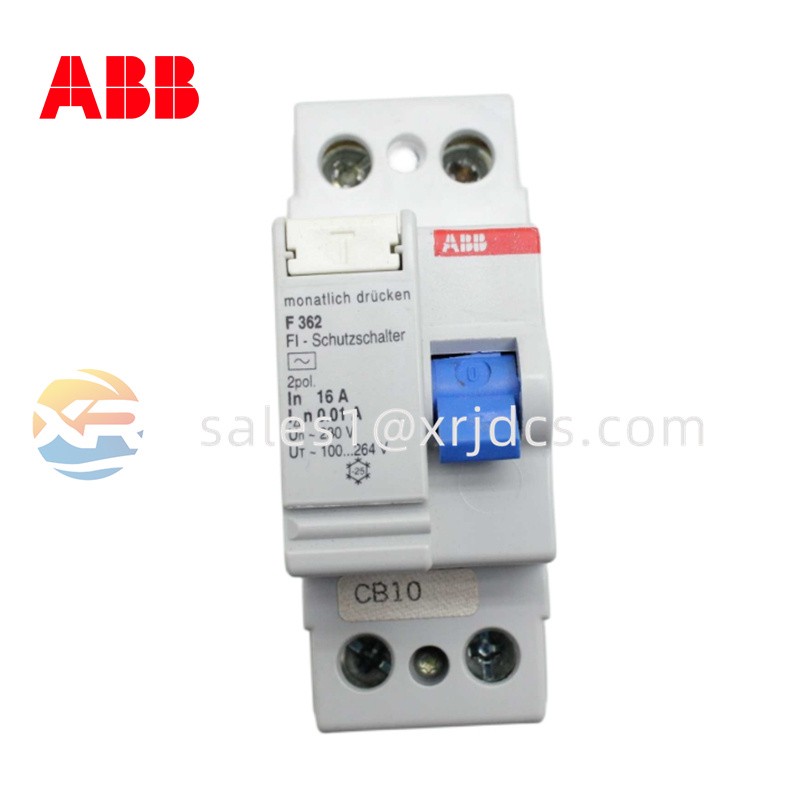

ABB F362 Residual Current Circuit Breaker (RCCB)

Product Overview

The ABB F362 Residual Current Circuit Breaker (RCCB) is a high-reliability low-voltage protection device designed to provide effective protection against electrical leakage currents and earth faults in industrial, commercial, and residential electrical systems. It belongs to ABB’s F360 series residual current protection products, which are widely used for improving electrical safety and preventing damage caused by insulation failures or accidental contact with live conductors.

The F362 is a two-pole residual current protection device that continuously monitors the balance between phase and neutral currents. When an abnormal leakage current is detected, the device quickly disconnects the electrical circuit to reduce the risk of electric shock, fire hazards, and equipment damage.

Designed with ABB’s proven electrical protection technology, the F362 provides reliable operation, compact installation, and easy integration into distribution panels, automation cabinets, and industrial power systems.

Product Function and Protection Principle

The main function of the ABB F362 RCCB is to detect residual current caused by insulation faults or unintended current paths to earth.

The device operates according to the following principle:

1. Normal current flows through phase and neutral conductors with balanced current values.
2. The internal differential current sensor continuously monitors current balance.
3. If leakage current occurs, the imbalance is detected.
4. When the residual current exceeds the preset tripping value, the RCCB activates the trip mechanism.
5. The protected circuit is disconnected to improve electrical safety.

The F362 is mainly used for protection against:

• Electrical shock hazards
• Ground leakage faults
• Insulation failures
• Fire risks caused by leakage currents

Technical Specifications

Hardware Structure and Composition

The ABB F362 is composed of several functional sections designed to provide stable and reliable protection performance.

Differential Current Detection Unit

The internal toroidal current transformer continuously measures the current difference between conductors.

This sensing mechanism allows the device to detect even small leakage currents and trigger protective action when abnormal conditions occur.

Trip Mechanism Assembly

The mechanical release system provides fast circuit disconnection when a residual current fault is detected.

The trip mechanism is designed for:

• Rapid response
• Reliable switching
• Long mechanical service life

Contact System

The main contact assembly provides the electrical connection and interruption function.

High-quality contact materials help ensure:

• Low contact resistance
• Stable current conduction
• Reduced electrical wear

Test Button Circuit

The built-in test function allows users to verify whether the residual current protection mechanism is operating correctly.

Regular testing helps maintain protection reliability.

Housing and Mounting Structure

The compact modular housing allows installation on standard DIN rails inside electrical distribution cabinets.

The design supports:

• Space-saving installation
• Easy replacement
• Clear terminal identification

Main Features and Advantages

Reliable Earth Leakage Protection

The ABB F362 provides dependable residual current monitoring and rapid fault disconnection, helping protect personnel and electrical equipment from leakage-related hazards.

Flexible Current and Sensitivity Options

The F362 series offers different rated current and residual current sensitivity configurations, allowing engineers to select suitable protection characteristics according to system requirements.

Compact DIN Rail Installation

The modular design enables simple installation in distribution boards and industrial control cabinets without requiring additional mounting hardware.

High Mechanical Reliability

The robust internal mechanism supports frequent operation while maintaining stable switching performance over long service periods.

Easy Maintenance and Testing

The integrated test button and clear terminal arrangement simplify inspection, troubleshooting, and preventive maintenance procedures.

Installation Guidelines

Before installing the ABB F362, the following recommendations should be followed:

• Verify that the rated voltage and current match the application requirements.
• Install the device on a compatible DIN rail.
• Connect phase and neutral conductors according to wiring instructions.
• Ensure proper grounding of the electrical system.
• Test the RCCB operation after installation.
• Confirm correct coordination with upstream and downstream protection devices.

Correct installation ensures reliable protection performance and prevents unwanted tripping.

Maintenance Recommendations

Regular Inspection

Recommended inspection tasks include:

• Pressing the test button periodically to verify operation.
• Checking terminal tightness.
• Inspecting for overheating or physical damage.
• Confirming normal trip operation.

Electrical Monitoring

Maintenance personnel should monitor:

• Unexpected circuit interruptions
• Repeated leakage alarms
• Abnormal temperature conditions
• Insulation resistance issues

Preventive Maintenance

To extend service life:

• Keep electrical cabinets clean and dry.
• Avoid excessive dust and moisture exposure.
• Replace damaged devices promptly.
• Perform scheduled electrical safety inspections.

Product Advantages

The ABB F362 Residual Current Circuit Breaker is a reliable electrical protection solution designed for applications requiring effective earth leakage protection and improved system safety. With accurate residual current detection, flexible protection configurations, compact DIN rail installation, and ABB’s established quality standards, the F362 provides dependable performance across industrial and commercial electrical environments.
