Product Overview

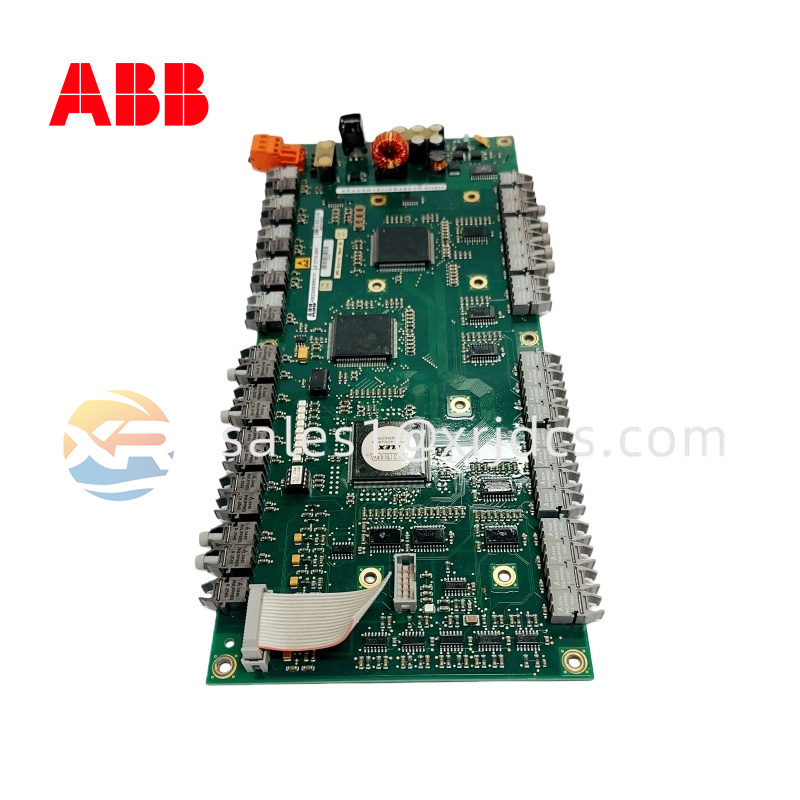

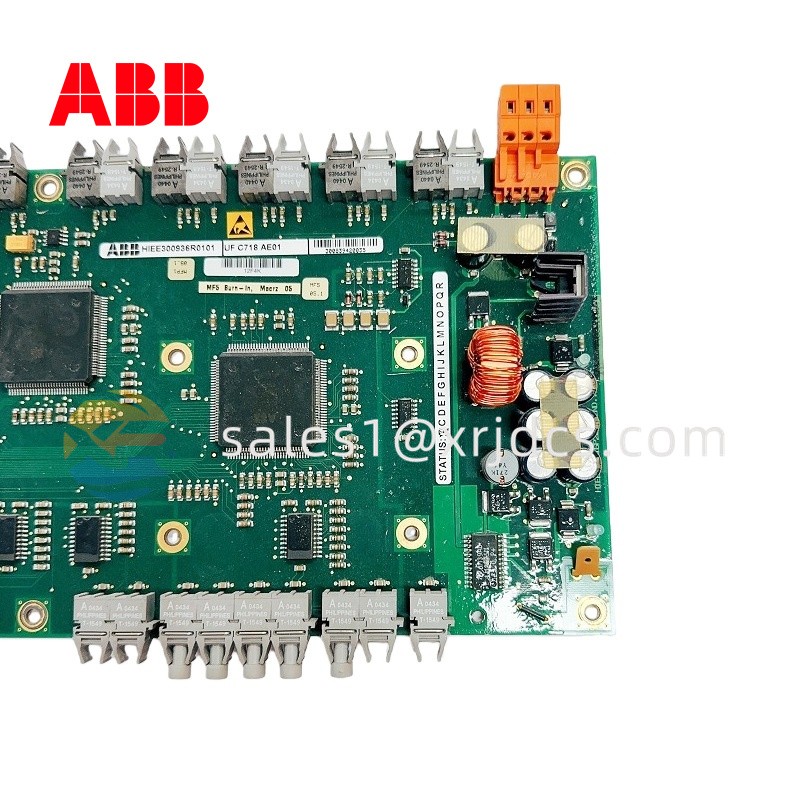

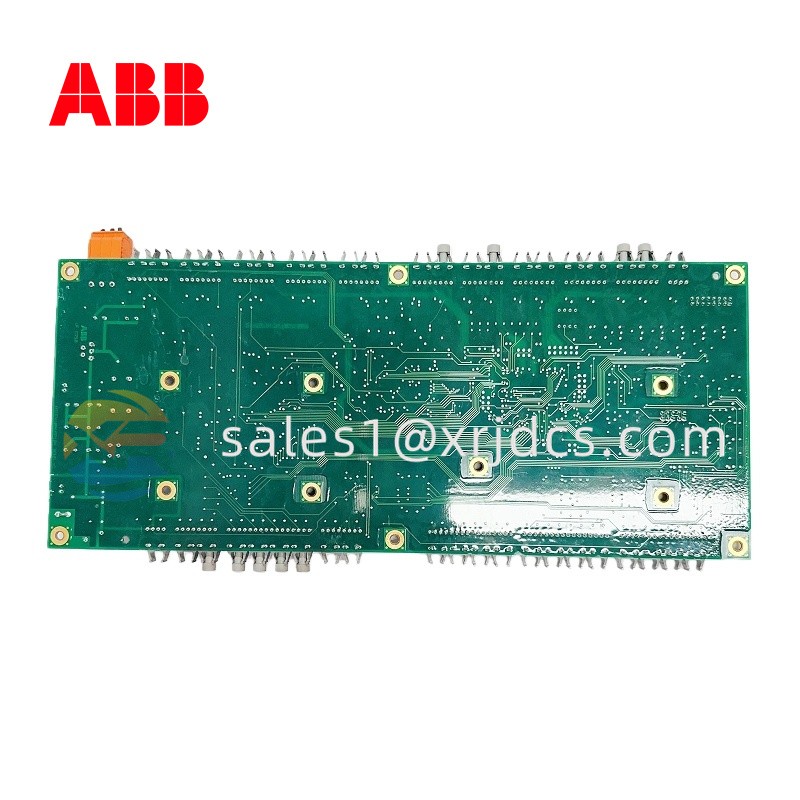

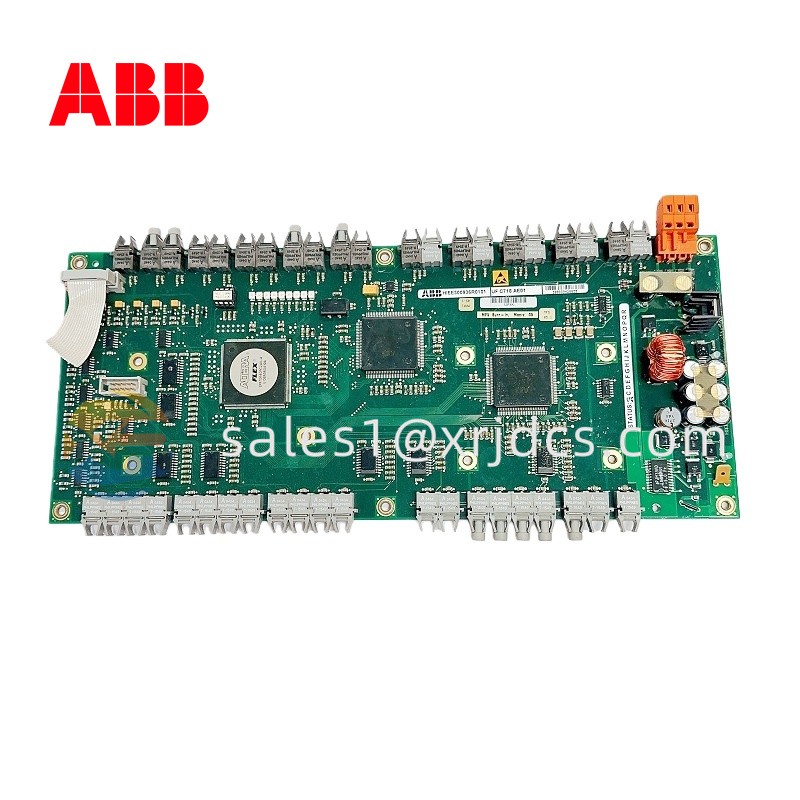

The ABB UFC718AE01 (HIEE300936R0101) is a high-performance Main Circuit Interface Board developed for ABB power electronic control platforms, including AC 800PEC and selected UNITROL excitation systems. It serves as a critical interface between the control processor and the main power circuit, enabling high-speed signal transmission, gate pulse distribution, voltage and current feedback processing, and system diagnostics.
Designed for demanding industrial applications, the UFC718AE01 combines advanced digital processing with robust electrical isolation to ensure reliable operation in environments characterized by high electromagnetic interference and heavy electrical loads. It plays a vital role in maintaining precise switching control of power semiconductor devices such as IGBTs and thyristors, contributing to the overall efficiency, stability, and safety of industrial drive and excitation systems.
Product Specifications
Rather than presenting specifications in a conventional table, the key technical characteristics of the ABB UFC718AE01 are summarized below:
- Manufacturer: ABB
- Model: UFC718AE01
- Ordering Number: HIEE300936R0101
- Product Type: Main Circuit Interface Board
- Compatible Platforms: ABB AC 800PEC, selected UNITROL excitation systems
- Primary Function: Main circuit interface and signal processing
- Communication: High-speed internal communication with fiber-optic support
- Input Power: 24 VDC control supply
- Operating Temperature: Approximately –40°C to +70°C (depending on system configuration)
- Installation Method: Plug-in industrial control board
- Protective Design: Industrial-grade conformal coating for enhanced environmental resistance
These characteristics allow the module to operate reliably in applications requiring fast control response and continuous system availability.
Key Features
High-Speed Main Circuit Communication
The UFC718AE01 provides a reliable communication bridge between the controller and the power stage. It transfers switching commands with extremely low latency while simultaneously collecting voltage and current feedback from the main circuit.
This high-speed communication architecture enables:
- Fast gate signal transmission
- Accurate closed-loop control
- Reduced switching delay
- Improved system efficiency
Such performance is particularly important in high-power converters and generator excitation systems.
Accurate Signal Processing
The interface board continuously acquires operational data from the main power circuit, including voltage, current, and status information.
Its signal conditioning circuitry helps improve:
- Measurement accuracy
- Noise immunity
- Control stability
- Dynamic system response
Reliable signal processing enables the controller to maintain precise regulation even during rapidly changing load conditions.
Industrial-Grade Reliability
Designed specifically for harsh industrial environments, the UFC718AE01 incorporates robust hardware construction and protective coatings to resist dust, humidity, vibration, and electrical interference.
These design features help extend service life while minimizing maintenance requirements in continuous-operation facilities.
Flexible System Integration
The module integrates seamlessly with ABB power electronic control systems and supports communication through high-speed internal buses and optical interfaces.
Its flexible architecture simplifies:
- System commissioning
- Hardware replacement
- Expansion projects
- Preventive maintenance
The result is improved maintainability and reduced downtime during system upgrades.
Structure and Components
The ABB UFC718AE01 is composed of several integrated functional sections.
Main Circuit Interface Section
This section provides electrical isolation and communication between the controller and high-power converter stage. It transfers gate commands while protecting low-voltage control electronics from high-voltage power circuits.
Signal Conditioning Circuit
Dedicated analog and digital conditioning circuits process voltage and current feedback signals before forwarding them to the control processor.
These circuits improve measurement accuracy and reduce the effects of industrial electrical noise.
Fiber-Optic Communication Interface
High-speed optical communication links provide secure data exchange between system modules while minimizing electromagnetic interference.
Fiber-optic communication offers excellent reliability in high-voltage converter applications where conventional electrical communication may be affected by switching noise.
Diagnostic and Monitoring Circuit
Integrated diagnostic functions continuously monitor the operating status of the interface board.
Typical monitored parameters include:
- Communication integrity
- Signal quality
- Board operating status
- Internal fault conditions
Diagnostic information assists maintenance personnel in identifying potential problems before they affect production.
Typical Applications
The ABB UFC718AE01 is widely used in high-power industrial automation systems requiring fast and reliable power electronic control.
Generator Excitation Systems
Within UNITROL excitation platforms, the interface board supports:
- Excitation control
- Voltage regulation
- Generator synchronization
- Power system stability
Its high-speed feedback capability contributes to precise generator performance under varying operating conditions.
High-Power Variable Speed Drives
The UFC718AE01 is commonly installed in ABB AC 800PEC-based drive systems controlling:
- Large induction motors
- Synchronous motors
- Rolling mills
- Mining equipment
- Marine propulsion systems
Its reliable interface functions enable accurate converter switching and stable motor operation.
Renewable Energy Systems
The board can also be applied in renewable energy installations, including:
- Wind power converters
- Hydroelectric generation
- Grid interface converters
- Energy storage systems
Its precise signal processing supports efficient energy conversion and stable grid integration.
Heavy Industrial Processes
Industries benefiting from the UFC718AE01 include:
- Steel manufacturing
- Cement production
- Petrochemical processing
- Mining
- Power generation
These applications require dependable power electronic control under continuous heavy-duty operation.
Installation Guidelines
Proper installation is essential for reliable operation of the UFC718AE01.
Recommended installation practices include:
- Disconnect all system power before replacing the board.
- Observe electrostatic discharge (ESD) protection procedures.
- Verify correct alignment with the backplane connector.
- Ensure all fiber-optic cables are securely connected.
- Tighten retaining hardware according to ABB installation recommendations.
- Confirm diagnostic indicators after system startup.
