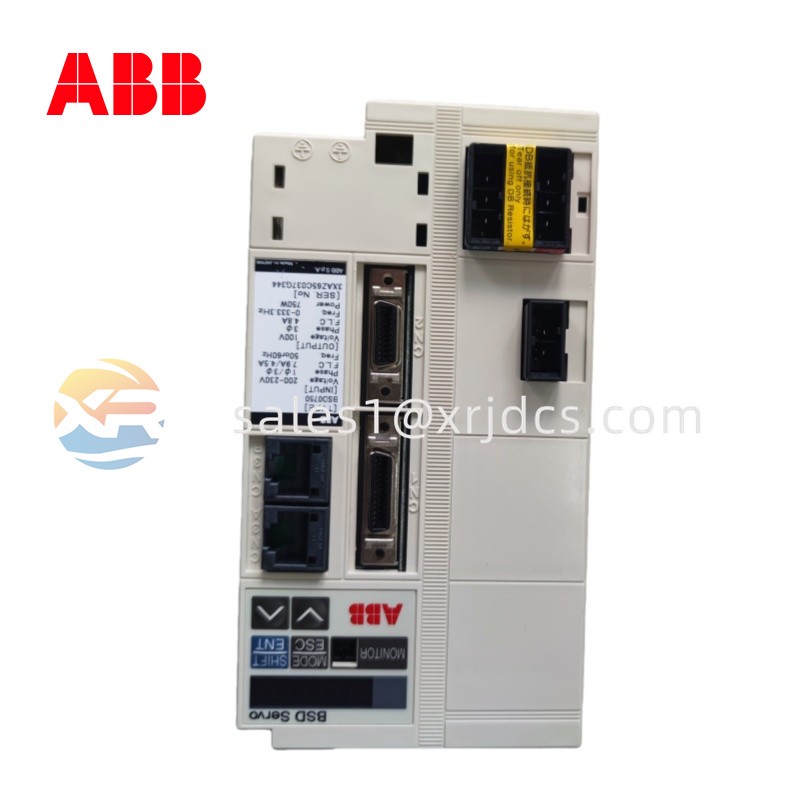

The ABB BSD0750 is a compact and reliable servo drive unit designed for precise motion control in industrial automation systems. It is engineered to deliver accurate speed, torque, and position control for servo motors, making it suitable for applications that demand fast response, smooth motion, and high operational stability.

With ABB’s proven drive technology, the BSD0750 supports continuous operation in demanding industrial environments while maintaining consistent performance and control accuracy.

Core Performance Features

Precise servo motor control with fast dynamic response

Stable operation under variable load conditions

Optimized for high positioning accuracy and repeatability

Compact design for space-efficient cabinet installation

High reliability for continuous industrial duty cycles

Technical Characteristics

Model: BSD0750

Product Type: Servo Drive Unit

Control Method: Digital servo control

Rated Power Class: Designed for medium-power servo applications

Input Supply: Industrial AC power supply

Motor Compatibility: ABB servo motors and compatible types

Installation Method: Control cabinet mounting

Operating Environment: Industrial-grade temperature and vibration tolerance

Manufacturer: ABB

Functional Description

The ABB BSD0750 functions as the control core between the automation controller and the servo motor. It receives motion commands, processes feedback signals, and delivers precisely controlled power to the motor. This ensures smooth acceleration, accurate positioning, and stable speed regulation even in high-speed or high-precision applications.

Its control architecture supports consistent motion profiles while reducing mechanical stress on connected equipment.

Structure and Internal Design

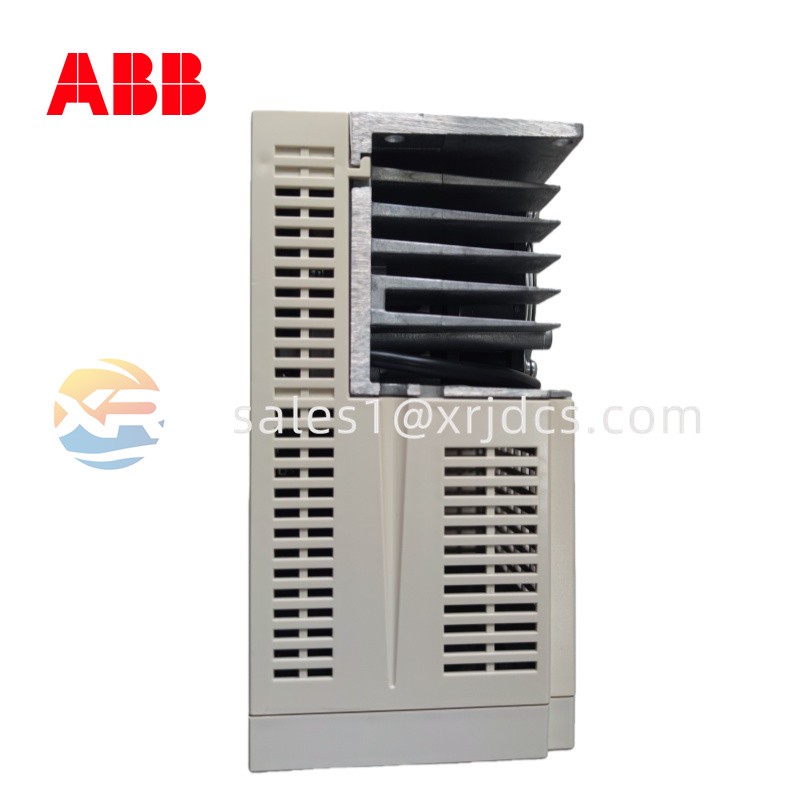

The drive unit features a rugged industrial housing with clearly marked terminals for power, motor, and control connections. Internally, high-quality power electronics, control processors, and protection circuits are arranged to ensure electrical stability, effective heat dissipation, and resistance to interference.

The compact form factor simplifies system layout and supports modular drive system design.

Application Areas

The ABB BSD0750 is commonly used in:

Industrial robots and manipulators

CNC machinery and machining centers

Packaging and labeling equipment

Assembly and material handling systems

Automated production lines requiring precise motion control

Installation and Maintenance

Installation is straightforward within standard control cabinets. Adequate ventilation and proper grounding are recommended to ensure optimal performance. Maintenance requirements are minimal and typically limited to periodic inspection of wiring, cooling conditions, and system diagnostics.

Under normal operating conditions, the BSD0750 offers long service life with stable and predictable performance.

Additional Benefits

Enhances motion accuracy and system efficiency

Reduces vibration and mechanical wear

Supports system scalability and upgrades

Fully aligned with ABB automation and motion control solutions
