ABB 5SHX1960L0006_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB 5SHX1960L0006

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Model: ABB 5SHX1960L0006
Number of I/O channels: 16 (safety I/O mode); not specified (IGCT mode)
Voltage range: 24VDC (safety I/O mode); 230/400V AC (IGCT mode)
Current range: 2A (safety I/O mode); 6A (IGCT mode)
Drive module parameters: Input voltage: 15-30VDC; Output current: ±20mA to ±1A; Maximum operating temperature: +105°C

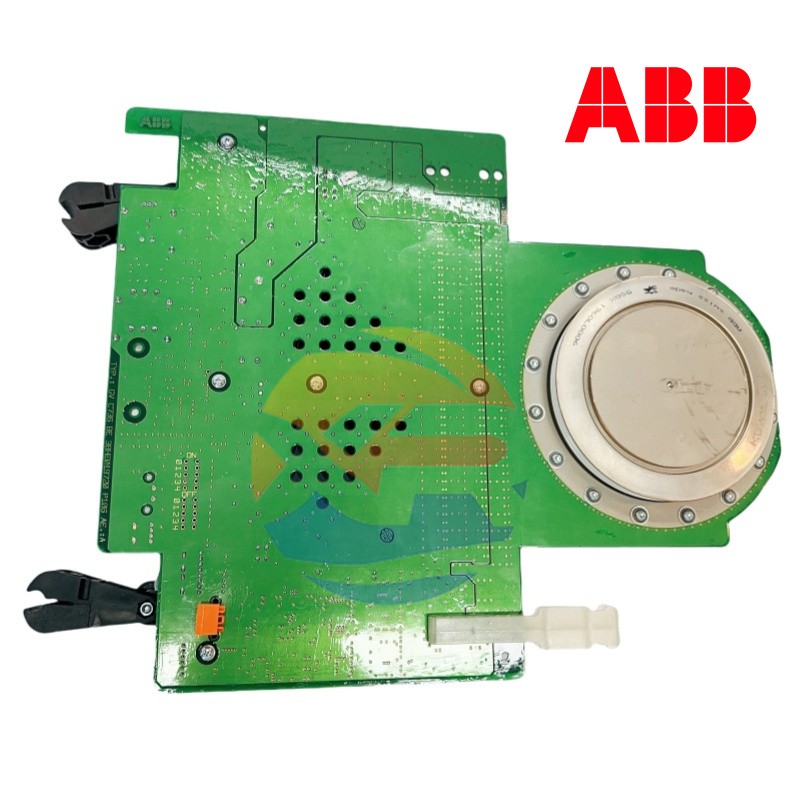

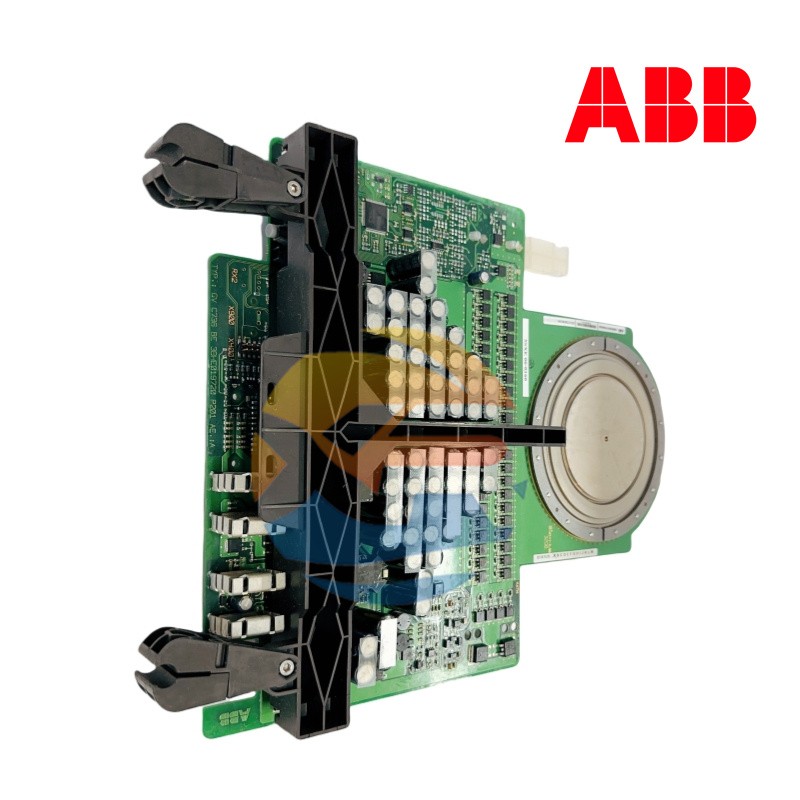

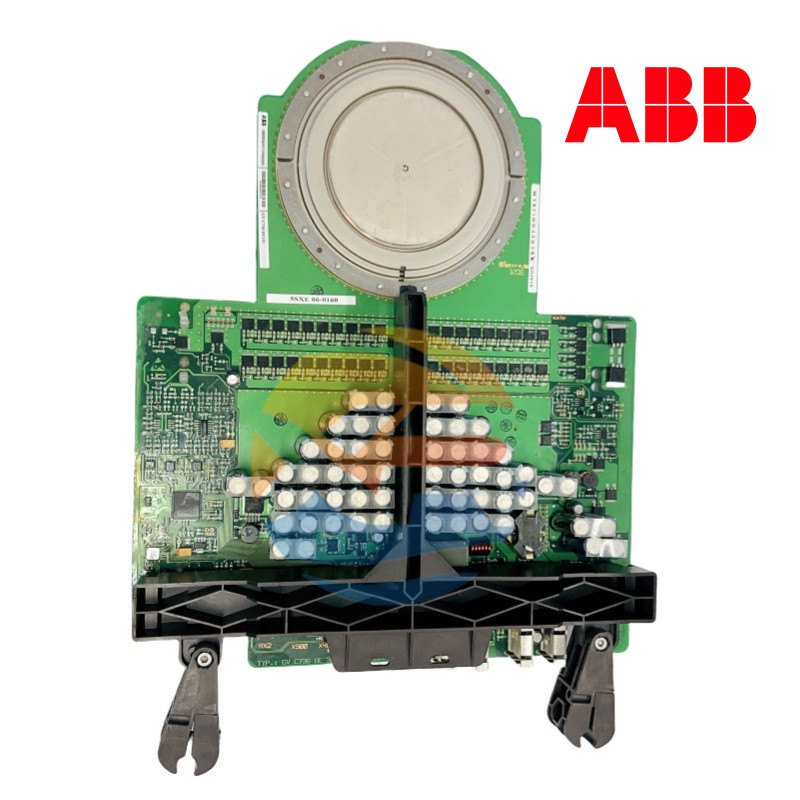

ABB 5SHX1960L0006

The ABB 5SHX1960L0006 is a safety I/O module in the ABB Ability™ System 800xA control system, and it can also be used as an IGCT (Integrated Gate-Commutated Thyristor) module in high-power power electronics applications. Its design goal is to provide high safety, reliability, and flexibility, making it suitable for various industrial scenarios.

Functional positioning:

As a safety I/O module, it supports redundant design (SIL 3 certification) and is suitable for control in hazardous areas.
As an IGCT module, it is used in industrial drives, power frequency conversion, and traction systems, supporting high-current and high-voltage switching operations.

Parameters
Model: ABB 5SHX1960L0006
Number of I/O channels: 16 (safety I/O mode); not specified (IGCT mode)
Voltage range: 24VDC (safety I/O mode); 230/400V AC (IGCT mode)
Current range: 2A (safety I/O mode); 6A (IGCT mode)
Drive module parameters: Input voltage: 15-30VDC; Output current: ±20mA to ±1A; Maximum operating temperature: +105°C

Product Features
High safety:
The safety I/O mode adopts a redundant design, complies with SIL 3 certification, and is suitable for control in hazardous areas.
The IGCT mode supports fast switching and low on-state voltage drop, reducing the risk of system failures.

Reliability and stability:

High-quality materials and strict testing processes are used to ensure long-term stable operation in industrial environments.
It integrates overload protection function to monitor current and voltage in real-time and prevent equipment damage.

Communication and interface:

Supports optical fiber interfaces (such as 100Base-TX/1000Base-FX) and Ethernet ports to achieve high-speed data transmission.
Provides multiple communication protocols (such as IEEE802.1Q VLAN, QoS) and alarm input/output interfaces.

Compact design:

The modular structure is convenient for installation and maintenance, and the shell protection level reaches IP20 or higher.

Other industries:

Involved in petrochemical, metallurgy, rail transit and other fields, meeting the safety and efficiency requirements in complex environments.
Installation and Maintenance

Installation:
Follow the official user manual to ensure that wiring and configuration comply with safety specifications.
The modular design allows for quick replacement, reducing downtime.

Maintenance:

Regularly check communication interfaces and overload protection functions to avoid faults caused by environmental factors (such as high temperature, humidity).
Fault diagnosis can be realized through alarm input/output interfaces and remote monitoring systems.
