ABB GRBTU_Xiamen XingRuiJia Import and Export CO,LTD

Model：ABB GRBTU

Brand: ABB
Price range (USD): 100-20000
Country: Switzerland
Parameter: Power supply voltage: 24V DC.
Operating temperature range:
-20°C to +60°C;
-40°C to +70°C.
(Note: There are temperature differences in different data, which may be due to different model versions or test conditions. It is recommended to refer to the actual product manual.)
Dimensions:
90mm × 120mm × 75mm;
100mm × 50mm × 20mm.

ABB GRBTU

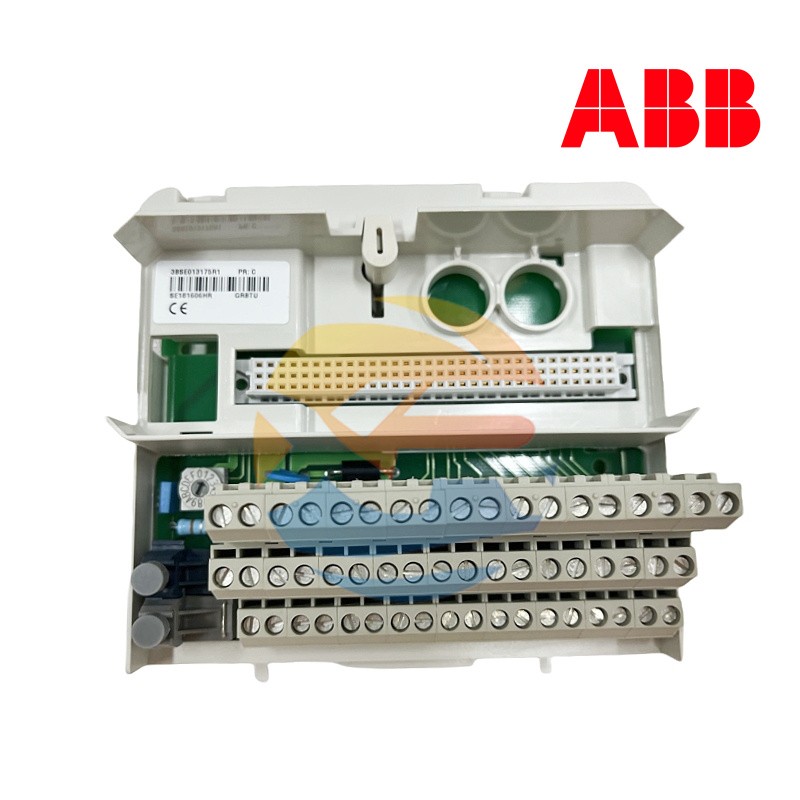

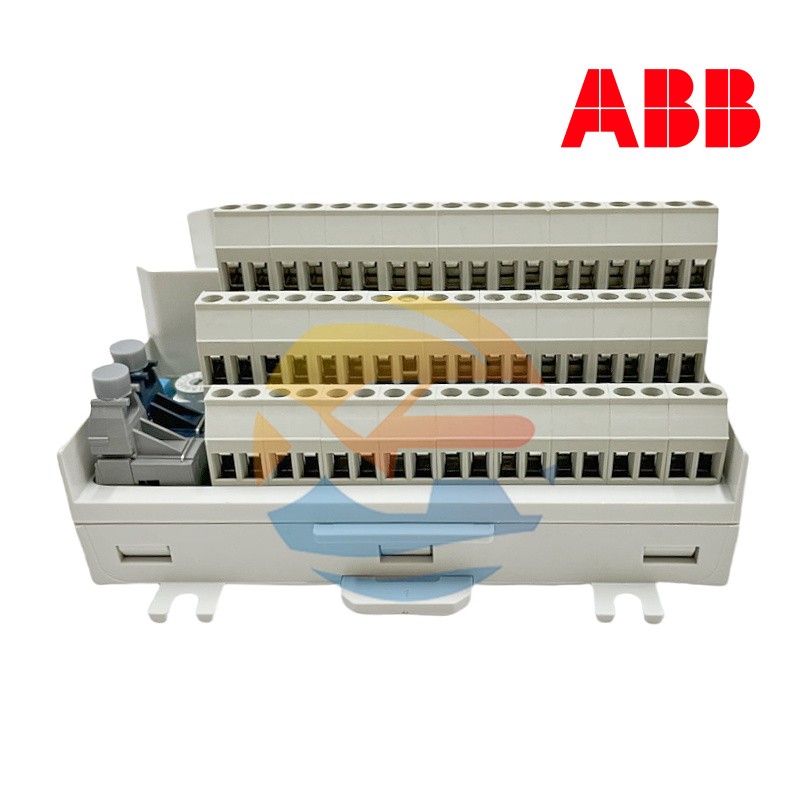

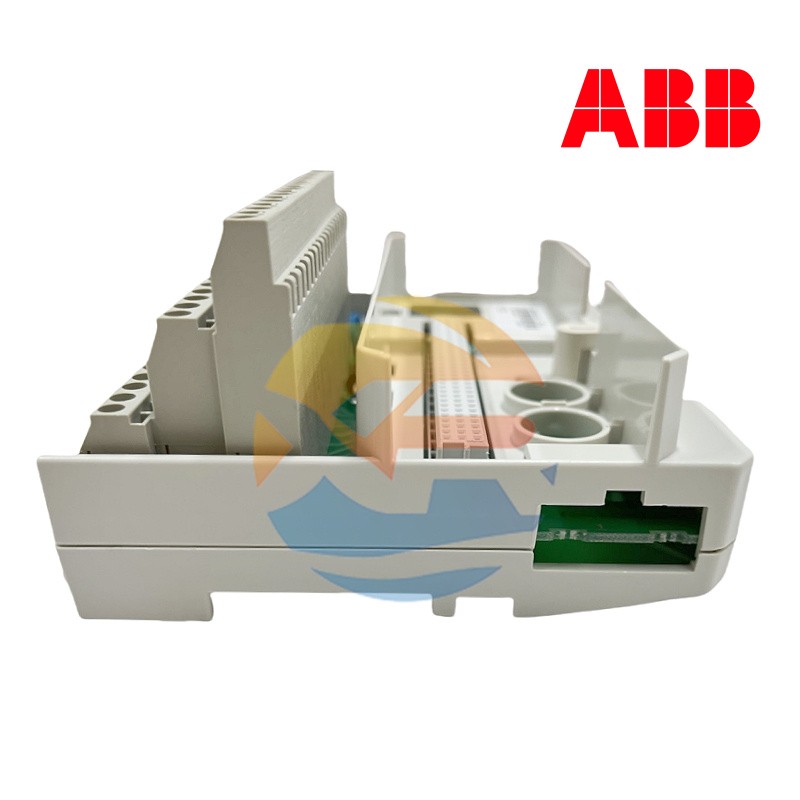

The ABB GRBTU 3BSE013175R1 is a modular terminal unit (Module Termination Unit, MTU) designed specifically for industrial automation systems. It is mainly used to connect ABB frequency converters (such as ACS800 and ACS880 series) to the Profibus DP network, enabling remote control, data monitoring, and parameter configuration. Its core function is to serve as a communication bridge, improving the communication efficiency and reliability of industrial systems. It is widely used in manufacturing, energy, water treatment, and other fields.

II. Parameters

Power supply voltage: 24V DC.
Operating temperature range:
-20°C to +60°C;
-40°C to +70°C.
(Note: There are temperature differences in different data, which may be due to different model versions or test conditions. It is recommended to refer to the actual product manual.)
Dimensions:
90mm × 120mm × 75mm;
100mm × 50mm × 20mm.
(Note: The dimensional differences may result from different installation methods or module configurations, and need to be confirmed in combination with specific application scenarios.)
Installation method: DIN rail mounting (mainstream method), and some support panel mounting.
Communication interface: Profibus DP (core protocol), and some models support protocols such as Modbus and HART.
Number of channels: 8 channels (supporting 0-20mA/4-20mA current input).

III. Product Features

Modular design:
Supports flexible expansion and maintenance, facilitating system upgrades.
Standardized interfaces (digital/analog input and output, PROFIBUS DP, etc.).
High reliability and durability:
Made of high-strength metal alloys (such as aluminum alloy), suitable for harsh industrial environments.
Strong anti-interference ability and equipped with overcurrent protection function to ensure stable operation of the equipment.
User-friendliness:
Simple setting and diagnosis functions to reduce downtime.
Supports custom parameters through software tools to adapt to complex industrial needs.
Compatibility:
Seamless integration with various ABB controllers (such as PLC, DCS) and third-party equipment.

IV. Structure and Composition

Material: High-strength metal alloy (such as aluminum alloy), with excellent mechanical strength and corrosion resistance.
Interface configuration:
Digital/analog input and output ports (the number varies by model).
Communication interfaces: RS485, RS232, PROFIBUS DP, etc.
Protection design:
Protection class IP20 (not clearly specified in some materials, please refer to the official documentation).
Grounding terminal design to ensure electrical safety.
Heat dissipation performance: Some models have built-in heat dissipation holes or heat sinks to extend service life.

V. Application Fields

Manufacturing: Optimize assembly line automation processes and improve production efficiency.
Energy industry: Monitor power distribution systems to achieve efficient energy management.
Water treatment: Ensure the efficient operation and monitoring of treatment facilities.
Transportation field: Data collection and control in intelligent transportation management systems.
Process industry: Complex control systems in petrochemical, metallurgical, and other fields.
Infrastructure: Automated management of public facilities such as water treatment and sewage treatment.

VI. Installation and Maintenance

Installation method:
The mainstream method is DIN rail mounting, and some support panel mounting.
The installation holes are precise, facilitating module insertion, extraction, and replacement.
Maintenance requirements:
Regularly check electrical connections and heat dissipation performance to ensure long-term stable operation.
Follow safety protocols and avoid operation in humid or high-temperature environments.
Fault handling:
The intelligent diagnosis function can monitor the equipment status in real-time and provide fault alarms and maintenance prompts.
