ABB SPCJ4D34-AA
ABB SPCJ4D34-AA is a highly specialized spare part for industrial control and protection systems. Specifically, it is a processor or controller module belonging to the SPCJ series within the Harmony/AC 160 system of ABB's renowned Symphony Plus series (evolved from the original Infi 90 system). This product plays a key role as the "process control core" in DCS (Distributed Control Systems) and is typically used in automation control cabinets for thermal power plants, large-scale chemical industries, water treatment, and other fields.
The ABB SPCJ4D34-AA module integrates a powerful microprocessor, memory, and dedicated firmware, responsible for executing complex control logic, data processing, and communication management tasks. It exchanges data with other I/O modules and communication modules via the system backplane, coordinates the activities of the entire control loop, and ensures that the production process adheres strictly to predefined safety, efficiency, and reliability standards. Its core value lies in providing extremely high processing determinism, excellent environmental tolerance, and seamless system integration capabilities, serving as the cornerstone for building large-scale process automation systems with high availability and high reliability.
Product Specifications
Product Model: SPCJ4D34-AA
Manufacturer: ABB
Product Type: Controller/Processor Module (for Symphony Harmony/AC 160 System)
Processor Architecture: Proprietary high-performance microprocessor
Memory Capacity: Dedicated working memory and flash memory (for storing applications and system firmware)
Processing Performance: Suitable for complex PID control, sequential logic, and data processing
Clock Speed: Specific clock speed not disclosed by the manufacturer; performance is defined by processing capability
Backplane Bus: Communication via dedicated high-speed backplane of the Harmony/AC 160 system
Supported I/O: Capable of managing a large number of local and remote I/O points (via corresponding I/O modules)
Communication Interface: Integrated internal system communication controller, supporting communication with nodes such as operator stations and engineer stations
Power Requirement: Multiple power supplies (e.g., +5 VDC) provided by the rack power module via the backplane
Operating Temperature: 0°C to +60°C (suitable for control cabinet environments)
Installation Method: Modular, inserted into the designated slot of the Harmony/AC 160 rack
Protection Class: IP20 (installed inside a protective cabinet)
Structure and Composition

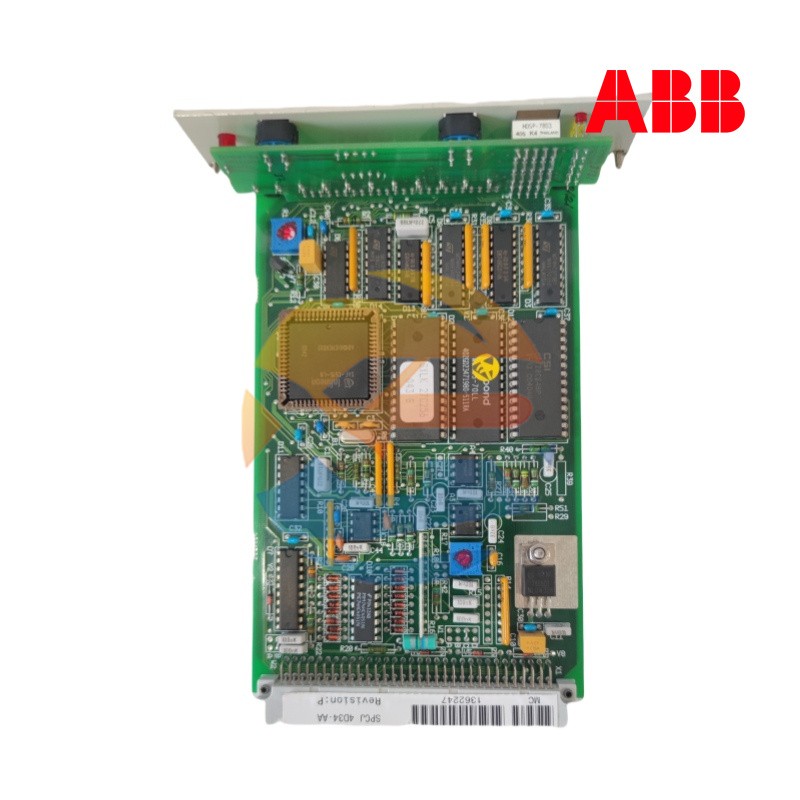

ABB SPCJ4D34-AA adopts a robust metal housing design conforming to European card specifications, ensuring excellent electromagnetic interference (EMI) shielding and heat dissipation. Its structure is complex and highly integrated: the core of the board consists of one or more proprietary high-performance microprocessors responsible for executing control algorithms. Surrounding the processor are high-speed static random-access memory (SRAM) for runtime data storage and flash memory for storing control system firmware and user applications.

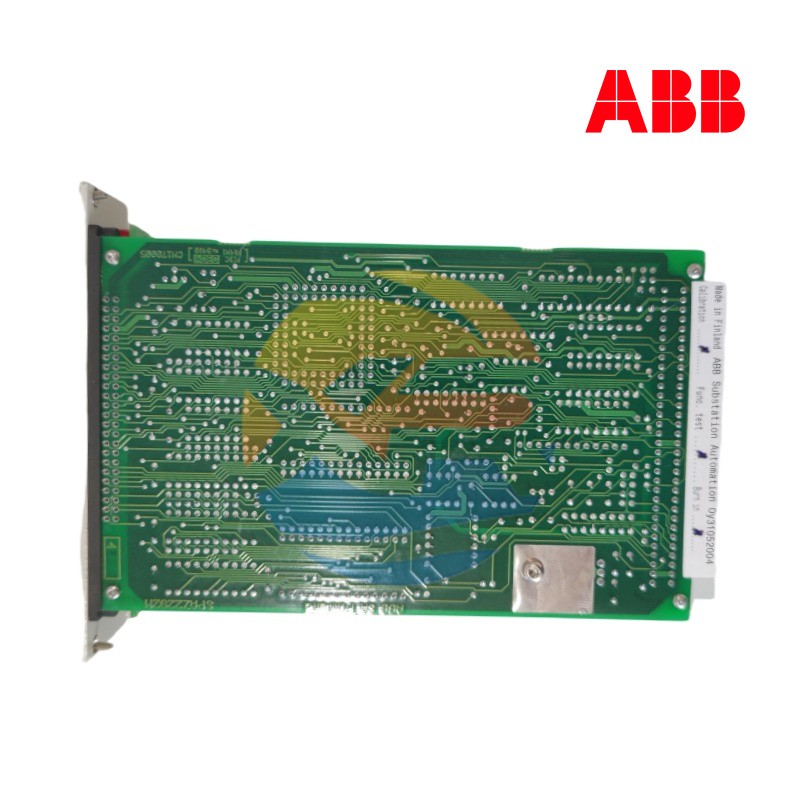

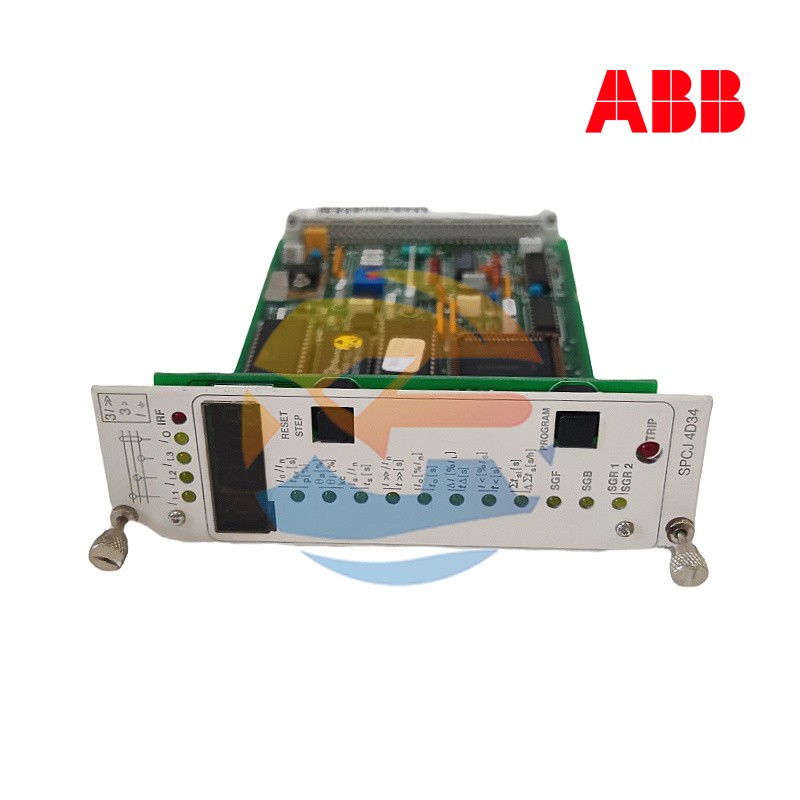

The board integrates dedicated ASIC (Application-Specific Integrated Circuit) chips, which are used for efficient management of backplane bus protocols, memory access, and I/O data exchange. The edge of the board features precision gold-plated multi-pin connectors (gold fingers) for insertion into the backplane of the Harmony rack, enabling interaction with power supplies, communication buses, and other modules. The front of the board is typically equipped with multiple status indicators (e.g., for operation, fault, communication activity) to facilitate quick diagnosis of the module's status. The module is usually secured in the rack via a locking device on the card frame.
Key Features and Advantages
1. Exceptional Processing Capability and Determinism
ABB SPCJ4D34-AA is optimized for executing complex real-time process control. Its powerful processing capability and optimized system architecture ensure stable and predictable scan cycles for control logic—this is crucial for safety interlocks and precision regulation loops that require millisecond-level responses, providing core guarantees for the stability of the entire production process.
2. Outstanding Reliability and Availability
This module is designed and manufactured in accordance with the strictest industrial standards, using high-quality components and undergoing rigorous testing. It can operate continuously and stably 24/7 in harsh industrial environments with a wide temperature range and electrical interference. Its mean time between failures (MTBF) is extremely long, making it a key component for building high-availability DCS systems and minimizing unplanned downtime.
3. Seamless System Integration and Redundancy Support
As a native component of the Symphony Plus system, it achieves perfect integration with ABB's engineer station software (such as Composer), operator stations, and the entire series of I/O and communication modules. The system typically supports redundant configuration of processor modules, and ABB SPCJ4D34-AA can act as a member of the primary-standby system to achieve non-disturbance switching. This provides uninterrupted control for critical processes and further enhances system reliability.
Application Fields
ABB SPCJ4D34-AA is almost exclusively used in large-scale, critical process industry infrastructure. In thermal power plants, it serves as the main controller of the DCS system, coordinating the control of boilers, steam turbines, generators, and their auxiliary systems to achieve safe, efficient, and environmentally friendly operation.
In large-scale chemical plants, oil refineries, paper mills, and water/wastewater treatment plants, it manages continuous production processes and executes complex analog quantity regulation (such as temperature, pressure, and flow control) and sequential control. Any site using the ABB Symphony Plus Harmony system is a core application field for SPCJ4D34-AA.
Installation and Maintenance
Pre-Installation Preparation
Before installing or replacing ABB SPCJ4D34-AA, safety procedures must be strictly followed to ensure that the power supply of the entire DCS cabinet is completely cut off and safely locked out (Lockout/Tagout). Operators must wear anti-static wristbands. Confirm that the part number of the new module is completely consistent with the original module. Carefully check whether the pins of the rack backplane slot are bent or corroded.
Maintenance Recommendations
Maintenance of this module is of a professional level, and any component-level maintenance on-site is strictly prohibited. Daily maintenance mainly involves monitoring its health status through system diagnostic tools and module status indicators. Any modification to applications or firmware upgrades must be performed using engineering tools such as ABB Composer and strictly in accordance with operating procedures.
When replacing the module, it is usually necessary to upload the application program from the old module and download it to the new module. All operations must be performed by certified engineers who have received specialized training from ABB.
