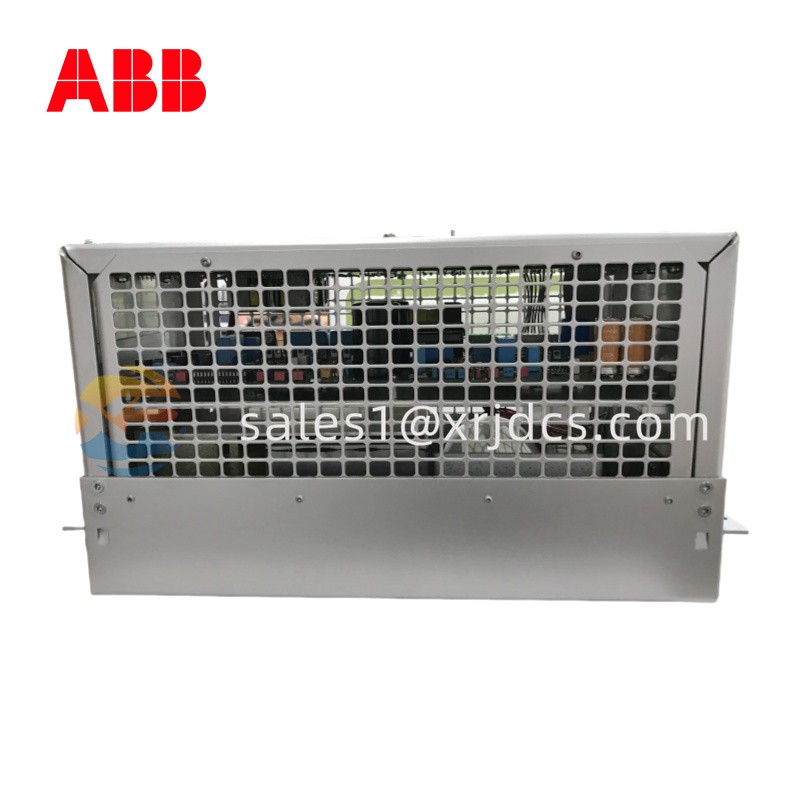

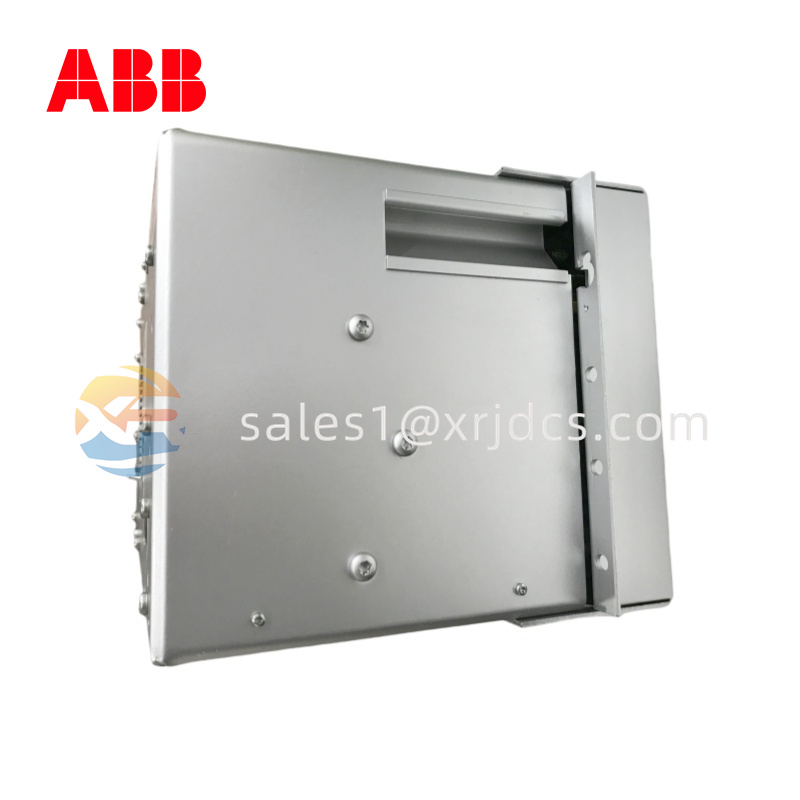

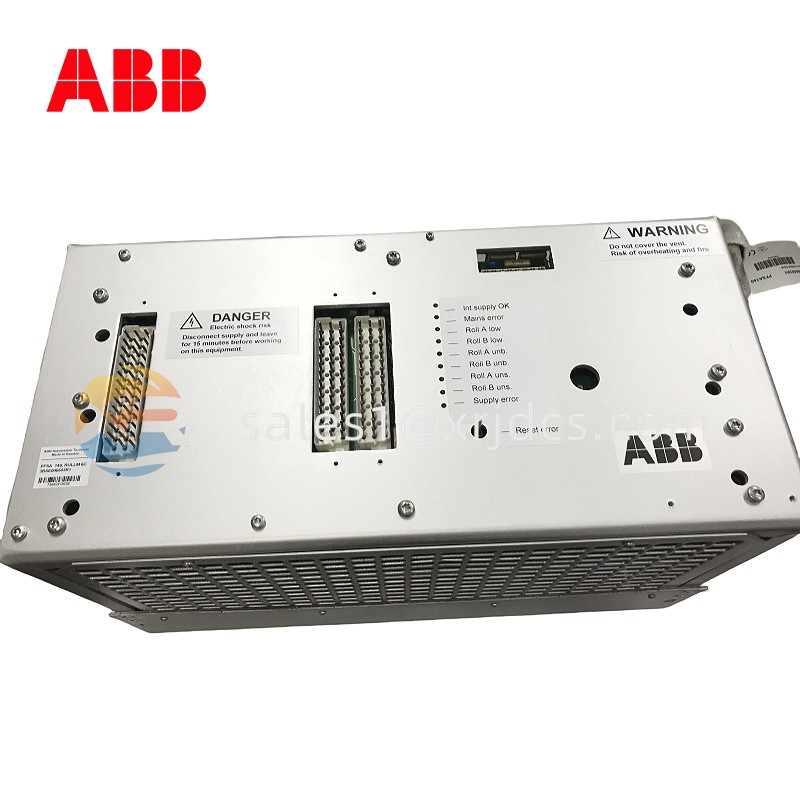

ABB PFSA140 3BSE006503R1 Analog Input Module

1. Application Fields

The ABB PFSA140 3BSE006503R1 is an analog input module primarily used in process automation, energy management, and industrial monitoring systems. It provides precise signal acquisition and reliable conversion of analog inputs into digital values for ABB’s AC800F and Freelance DCS platforms.

This module is ideal for industries requiring high signal accuracy and stable communication, including:

Oil & Gas – pressure, temperature, and flow monitoring.

Power Generation – turbine and boiler process control.

Chemical & Petrochemical – process parameter feedback and regulation.

Pulp & Paper – process optimization and data recording.

Water Treatment – pH, level, and flow sensor integration.

2. Structural Design & Composition

The PFSA140 features a modular and compact architecture designed for space-efficient rack mounting. Its robust PCB houses precision analog circuits, isolation amplifiers, and input filters for noise reduction.

Front-mounted terminals allow easy connection to field sensors, while LED indicators provide quick visual feedback of channel status and fault conditions.
The module’s durable industrial-grade enclosure offers enhanced protection against humidity, dust, and electromagnetic interference.

3. Technical Specifications

4. Key Features

High Precision Conversion: Delivers accurate measurement of analog sensor inputs.

Excellent Electrical Isolation: Prevents interference between input channels.

Hot-Swappable Design: Enables replacement without shutting down the control system.

Self-Diagnostic Functions: LED indicators and fault monitoring improve system reliability.

Flexible Configuration: Compatible with various field instruments (transmitters, sensors).

Long-Term Stability: Ensures consistent performance in 24/7 industrial applications.

5. Installation Guidelines

Mount the module vertically for optimal ventilation.

Connect sensor wires to the input terminals according to ABB’s wiring diagram.

Ensure proper grounding to reduce noise and prevent electrostatic discharge.

The module should be installed in a clean, dry environment with temperature control.

Always power off the system before inserting or removing the module.

6. Maintenance & Service

The ABB PFSA140 requires minimal maintenance. Regular inspection should include:

Cleaning dust from terminal areas.

Checking for loose connections.

Verifying calibration accuracy periodically.

Updating firmware or diagnostics through ABB’s Freelance system tools when required.

The module’s high reliability and robust design make it an excellent long-term investment for industrial control systems.

7. Product Overview

In summary, the ABB PFSA140 3BSE006503R1 Analog Input Module is a reliable and efficient solution for precise signal measurement in ABB’s control environments. With excellent accuracy, strong isolation, and easy integration, it enhances process transparency and system stability across a wide range of industries.
